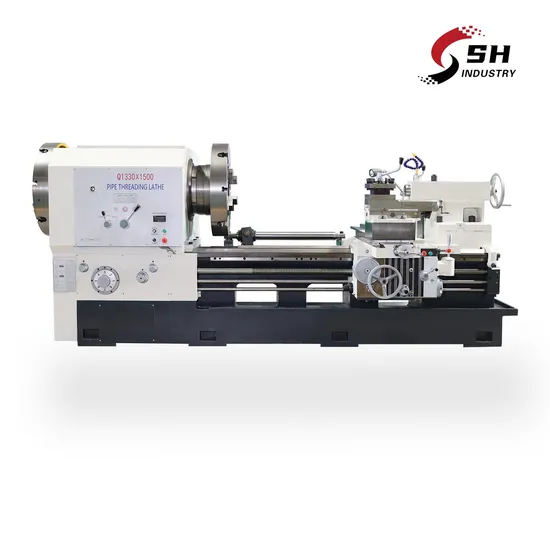

Horizontal Lathe Machine Q1330 Large Thread Lathe for Machining Oil Pipe

Product Description

Product Description

Horizontal Lathe Machine Q1330 Large Thread Lathe for Machining Oil Pipe
Product Parameters

Specification	Q1330
Capacity
Chuck size	4-jaw chuck(780)
Max. swing dia over bed	800mm
Max. swing dia over slide	470mm
Max. length of workpiece	1500mm
Width of bed	600/650mm
Spindle
Spindle bore	305mm
Spindle motor power	15kw
Spindle speed	VF 2.steps(20-300)r/min
Axis
Z axis feed grade/range	32/0.095-1.4mm/r
X axis feed grade/range	32/0.042-0.7
carriage rapid traverse speed	3740mm/min
corss slide rapid traverse speed	1870mm/min
Metric thread grade /range	22/1-15mm
Inch thread grade /range	26/14-1T.P.I
Traverse of corss slide	430mm
Max.Traverse of turret	250mm
Tailstock
Tailstock quill diameter	100mm
Tailstock quill travel	250mm
Tailstock quill taper	MT6
Machine Dimensions
Overall dimensions(LxWxH)	3950x1700x1600mm
Machine weight	7t

Application:
Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
The main performance characteristics:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
Realistic photos

Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
