Dafon Automatic Block Cutter Versatile Stone Cutting Machine for Quarry, Paving Stone, and Concrete Processing

Product Description

Product Description

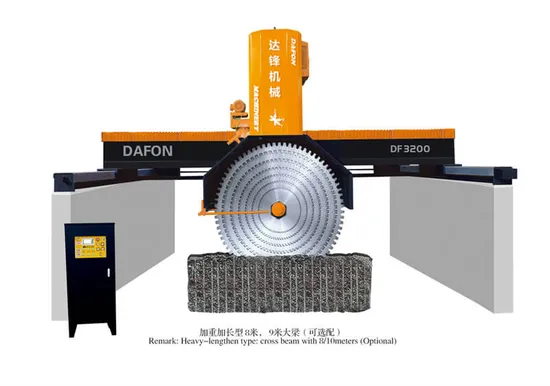

Dafon block cutting machine
Machine Features:
DAFON Multi-blade block cutter uses an inverter to control left-right feeding adjusts the speed according to the stone material. It uses hydraulic lifting system, forward-backward slicing uses accurately precision screw nut driving, automatic slicing, main spare parts adopt imported quality materials; The block can be placed in the ground directly to save worktable and maintenance costs; The machine is featured as efficient cutting operation, accurate slicing precision, the flatness of plate after cutting, etc, be suitable for cutting granite and marble block.
Technical parameters:

Main motor power	30-37kw
Total motor power	40-48kw
Beam sieze	500*600*7500mm
Blade size	1600-2500mm
Max vertical stroke	1100mm
Max processing length	4000mm
Max processing width	2200mm
Water consumption	8.5m³/h
Machine size and weight	7800*4500*6500mm, 12T

Production process:
1.Customer need to prepare two sides foundation first with drawing provided by us
2.Install machine and blades
3.Machine cut
4.Take down the slab from block one by one, we can make a mould to support the slab, machine can cut directly to the end and slab will not fall apart
5.Trolley is optional according to customers' requirement

After Sales Service:
We provide skilled and rich experience technician for installation and after-sale service.

About Us

DAFON Machinery is located in Quanzhou City, the hometown of overseas Chinese in southern Fujian Province, we are a professional stone machinery company integrates design, manufacture, sale as a whole. We mainly produce a curbstone assembly line machine, infrared trimming machine, automatic trimming machine, infrared middle block cutting machine, single-arm multi-blades cutting machine, large gantry cutting machine, bridge stone cutting machine, mining machine and all sorts of stone cutting machines.

Packaging & Loading:

More Product

Exhibition Show

Certificate

FQA

Q. Do you have different quality grades and bonds for different materials?
A. Yes, for more than 10 years, we have accumulated rich experience on diamond tools production. Regular quality grades(A/B/C) and bonds(hard/medium/soft) are available for various types of materials and machines. We can customize product as per special requests(price/dimension) from clients.

Q. Do you offer free samples?
A. Normally we do not offer free sample. But further solutions will be discussed respectively upon request.

Q. If we need technical support, can you offer us?
A. Sure, we have pre-sale and after-sale service team to offer technical support, Well-trained salespersons and engineers are always to ready to respond to your technical doubts.

Q. Are you a manufacturer or trading company?
A. We are a professional stone machinery manufacturing company.We have our own production team and R & D team.

Q. How about the quality of machines?
A. We have our own experienced QC. All machines are manufactured strictly according to the national and international standards.Our machines will be strictly inspected and controlled before delivery.

Q. What is the MOQ ?
A. One set machine
