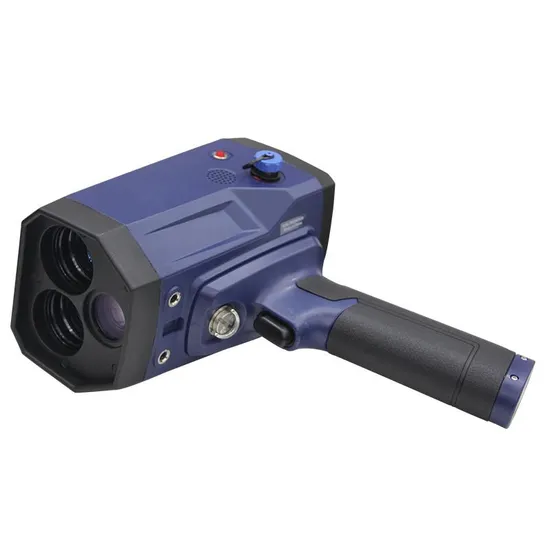

Handheld Type Digital Laser Tachometer Vicimeter Speedometer Rpm Meter

Product Description

Product Description
1.4.3-inch color touch screen display, clear and convenient readings
2.Class 1 human eye safety laser
3.Speed range 320km/h, speed accuracy 2km/h, distance accuracy 300m
4. With GPS function, voice prompts, humanized design
5. Support 16GBSD card, recording dynamic image law enforcement forensics
6.RS232 serial communication port; USB2.0 image data transmission
7. Novel design, compact style, lightweight, high sensitivity, long-time work
Application areas: traffic speed measurement, road plant, highway, field training, sports and so on. Product Parameters

performance
Best focus distance	70 meters (230 feet)
optimal operating range	Handheld 15-90 meters (50-295 feet)
	Tripod mode 15-100 meters (50-328 feet)
Speed measurement accuracy	±2 km/h, ±1 mph
Speed range	0 km/h~320 km/h; 0 mph~200 mph
Ranging accuracy	±30 cm, ±12 inches
Speed display resolution	Speed 1 km/h, 1 mile/h
Distance display resolution	1 meter, 1 foot
Minimum speed measurement distance	Measurement mode ≤10 meters, weather mode 60 meters (automatic software recognition)
Farthest ranging distance	It can reach 600-700 meters in speed measurement mode; 1200 meters in distance mode.
Speed test time	0.33-0.67 seconds
Speed measurement unit	kilometers per hour/miles per hour/meters per second
unit of distance measurement	meters/feet/yards
Laser wavelength	905 nm
Laser beam divergence	2.5 mrad
eye safety	FDA Class1 (CFR21)
Mechanical structure
Body weight	1.55kg
size	197X124X316mm
environment	IP65 waterproof/dustproof
operating temperature	-10~+60ºC(14~140ºF)
Charging temperature	0~+45ºC(32~113ºF)
stored temperature	-20~+60ºC(-4~140ºF)
hardware
processor	ARM DM368
Snapshot data storage	Removable SD card, 16GB
SD file system format	MS-DOS (FAT16, FAT32)
	Linux (EXT2, EXT3)
show	4.3 inches (10.9 cm), 480X272 pixels, color, touch screen
camera	2 million high-definition industrial CCD camera (1600X1200)
camera lens	75mm, fixed focus
GPS
receive channel	20
Maximum update speed	1Hz
maximum height	18,000 meters (59,000 feet)
Maximum speed	515 meters/second (1689ft/sec)
Sensitivity	Get -142dBm, Track -159dBm
Get Time	Hot start 1 second
Cold start	less than 60 seconds
Reacquire	<1.5 seconds
Accuracy	horizontal position
average	5 meters (7.2 feet)
maximum	10 m (32.8 ft), spontaneous; 5 m (16.4 ft), SBAS corrected
vertical position	Average 0 m (0 ft); maximum 15 m (49.2 ft); horizontal speed 0.1 m/s (0.3 ft/s); time accuracy synchronized with GPS; 1 microsecond
Real Time Clock	CR3032 backup battery 20PPM, can be used for 3 years without battery pack
Input/output (I/O)	RS232 serial communication port; USB2.0 image data transmission; resistive touch screen input; 6 button input (including trigger)
power
Battery	7.4V DC, lithium polymer rechargeable battery pack, short circuit, overcharge protection, provides 5-7 hours of operation
battery charger	110vac~240vac 50/60Hz input
Power consumption	5 watts
software
operating system	Linux operating system, customized device driver
Anti-interference	Automatic anti-interference
Video size	Standard format, 640X240 pixels
Still image size	1600X1200 pixels
maximum record size	Unlimited, related to memory
data encryption	AES-128
other
Measurement mode	Continuous, locked, automatic, video tracking mode, ranging mode, video mode
Voice prompts	Speed and sound synchronization
language	English, Chinese
tripod	Support (ordinary camera tripod interface)
configuration list	Suitcase, host, battery handle*2, charging base, charging head, serial port output cable, tripod converter, manual, lens cleaning cloth, warranty card,

Detailed Photos
Company Profile
Onick Optics (Wuhan) Co., Ltd., located in Creative World Park, Hongshan District, Wuhan, is a professional enterprise engaged in the research and development and sales of rangefinders, binoculars, night vision, thermal imaging, hunting cameras, speedometers.
Products involved in security use, fire safety supervision, border defense, emergency rescue, electric power, communications, water conservancy, environmental monitoring, key universities, scientificresearch units and other fields. At present, our company has obtained ISO quality system certificates and weapons and equipment quality management system certificates, as well as a number of patent certificates for its own intellectual property rights.
Our company's own brand "Onick" has been committed to the development of high-quality, user-friendly portable outdoor optical instruments. Adhere to the superior product performance and perfect after-sales service to become a brand trusted by customers.
We will continue to explore the new era of optical and electronic technology, apply it to as many applications as possible, provide users with simple, high-quality outdoor optical products, and further become the world's leading pioneer of optical and electronic measurement technology.
Exhibition
FAQ 1. Are you the manufacturer or trading company?A: Onick Optics is professional enterprise engaged in the research and development and sales of rangefinders, binoculars, night vision, thermal imager, hunting cameras, speedometers.We are manufacturer in China with an annual production capacity of over 300,000 units. 2. Do you have any certificates?A: Our company passed ISO 9001 quality system. All our products passed CE, RoHS, FCC verification and more.Furthermore, we also have patents of some products.3. What is the lead time of your products?A: It depends on the order quantity and the season you place the order. Usually we can ship within 7 days for small quantity,for large quantity please contact us. 4. What is your payment term? A: By Trade Assurance or T/T in advance.5. What is the shipping method?A: Usually shipped by express (DHL, FedEx ,UPS etc). 6. How can I place order?A: You can contact us by sending inquiry about your order details.7. How long is the warranty?A: Most of our products provide the 18 months warranty policy.8. Do you accept OEM or ODM?A: Yes, it depends on the quantity.For other questions we will reply you as soon as possible while receiving your inquiry.

---
