Best Selling Single Cylinder Rotary Cooler

Product Description

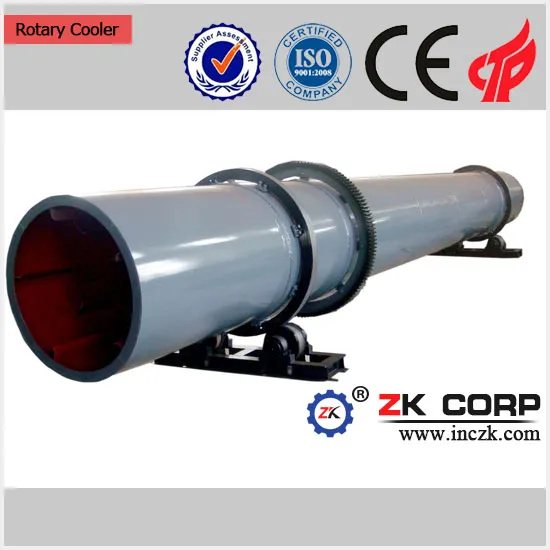

Best selling single cylinder rotary cooler
Product introduction

Rotary cooler is a key equipment of the material calcinations line. Rotary cooler is widely used in building materials, chemistry, metallurgy and other industries. It is usually equipped together with rotary kiln.



Working Principle:

In the natural situation, the slope of Cooler cylinder is 3.5% to 5%, keeping low-speed rotation. The material is feeding from end of Cylinder (high side), circular lifting plate keeping the materials scatter lifting and moving down. Cooling material is discharged from the low end, and preheated air is sending into the rotary kiln for calcinations.

Features and Benefits:

1. Simple & reasonable structure, easy installation.
2. Efficient & productive.
3. Supported by rolling bears, small damping and low power consumption.
4. Stable and reliable performance, low operating and maintenance costs.
5. Environment adaptability, wide applications.
China Rotation Coolers
Wide Usage:
Rotary Cooler is suitable for cooling hot materials and getting the air absorbing lots of heat from the hot materials at the same time to make the combustion air getting to hot, for strengthening calcining and decreasing heat consumption, it's an important corollary equipment of rotary kiln. Cooling machine is the main associated equipment for rotary kiln production system. Its structure is simple but the performance is good and operating is reliable. The waste gas after heat exchange will import to rotary kiln again so as to improve the thermal efficiency of the whole system.
The advantages of Rotary Cooler:
1). Rotay cooler can be heated direct or indirect; The heating efficiency can be up to 95%
2). Rotary cooler operating under high temperature and low oxygen to avoid materials being self burning or exploding when drying. Big drying capacity, highly industrialization and low cost
3). Low amount of air required to save tail gas handling cost
Rotary Cooler is a kind of quench cooler. Its principle is to quench clinker which is laid in levels on the grate plates with cold wind from air blower. Temperature of clinker will be rapidly dropped from 1200° C to be less than 100° C. Plenty of waste gases after cooling could not only be used as secondary air in the kiln, but also be heat source for drying coal in the coal mill.
Working principle:
Rotary Cooler (lime cooler, cement cooler, magnesium cooler) work principle: Cooler is widely used in building material, chemical industry, metallurgy, and other industry, matching with rotary kiln. The equipment in the natural state, low speed revolving in a slope of 3.5%, the material feeding from the top of cylinder, scatter plate is scatting the material to make it discharging from the bottom side of cooler.

Specification (m)	canister			electricmotor		Reducer model	size (mm)	weight (t)
	volume (m 3 )	rev (r/min)	pitch (%)	model	Power (kw)
Φ 1× 15	11.8	5	5	YCT200-4B	7.5	ZQ400	15000× 1876× 2069	9.5
Φ 1.2× 12	13.57	5	5	YCT225-4A	11	ZQ500	12000× 2159× 2475	10.3
Φ 1.2× 15	17	4-5	5	YCT225-4B	15	ZQ500	15000× 2294× 2475	12.8
Φ 1.2× 20	22.6	4-5	5	YCT225-4B	15	ZQ500	20000× 2294× 2475	16.8
Φ 1.5× 10	17.67	3-5	5	YCT225-4B	15	ZQ650	10000× 2655× 2895	16.5
Φ 1.5× 14	24.9	3-5	5	YCT225-4B	15	ZQ650	14000× 2655× 2895	19.2
Φ 1.5× 18	31.8	3-5	5	YCT250-4A	18.5	ZQ650	18000× 2655× 2895	22.9
Φ 1.5× 20	35.3	3-5	5	YCT250-4A	18.5	ZQ650	20000× 2655× 2895	25.4
Φ 1.8× 16	30.5	3-5	4	YCT250-4B	22	ZQ750	16000× 3060× 2980	35.4
Φ 1.8× 18	45.8	3-5	4	YCT250-4B	22	ZQ750	18000× 3060× 2980	32.3
Φ 1.8× 20	50.9	3-5	4	YCT250-4B	22	ZQ750	20000× 3060× 2980	39.2
Φ 2.0× 16	50.3	3-5	3.5	YCT250-4B	22	ZQ750	16000× 3340× 3420	38.6
Φ 2.0× 20	62.8	3-5	3.5	YCT280-4A	30	ZQ750	20000× 3340× 3420	42.8
Φ 2.2× 14	53.2	3-5	3.5	YCT280-4A	30	ZQ750	14000× 3620× 3570	45.3
Φ 2.2× 18	68.4	3-5	3.5	YCT280-4A	30	ZQ750	18000× 3620× 3570	49.4
Φ 2.2× 20	76	3-5	3.5	YCT280-4A	30	ZQ750	20000× 3620× 3570	51.8
Φ 2.4× 16	72.3	3-4	3.5	YCT280-4A	30	ZQ850	16000× 3860× 3760	58.8
Φ 2.4× 20	90.4	3-4	3.5	YCT280-4A	30	ZQ850	20000× 3860× 3760	63.9
Φ 2.8× 28	172.	2.5	3.5	Y280M-6	55	ZQ1000	28000× 4350× 4200	130
Φ 3× 30	212	1-2	3.5	Y315S-6	75	ZL115	30000× 4860× 4630	169

Company information:
Henan Zhengzhou Mining Machinery Co., Ltd is located in Wulong Industrial Park of Zhengzhou Xingyang which is the capital of Henan Province. It is at the junction of 310 State Road and Xingmi Road, close to the highway, railway station, West Zhongyuan Road, downtown area of Zhengzhou and Zhengzhou International Airport. The transportation condition is very convenient. The main products of company include: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.

---
