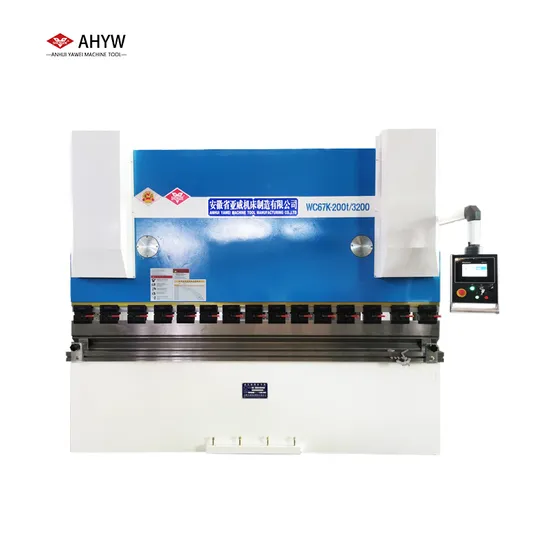

CNC Hydraulic Press Brake 200t3200 with Delem Da41t Controller

Product Description

ANHUI YAWEI YWT SERIES CNC BENDING MACHINE
Product Description
Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. The DA41T servo drive cnc press brake is primarily used for the bending and processing of stainless steel, iron, copper and aluminum, and features a high production efficiency and bending accuracy. The DA41T servo drive cnc press brake forms predetermined bends by clamping the workpiece between a matching punch and die in different shapes, so that metal can be bent into various shapes.Features
Anhui Yawei YWT series allow us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in bending.
This feature is even enhanced by a system of manual crowning. Worth mentioning is also the possibility to add options and upgrades on the configuration, at later stage. Constructed of high quality parts and offering serious reliability , Y-axis Torsion bar syncro technology with high approach, bending and return speeds. Detailed Images
Delem DA41T Controller
* Panel based housing* Bright LCD screen* Beam stop control (Y)* Backgauge control (X)* Retract functionality* Manual movement of all axes* Backgauge control (R) (DA-42T)* Crowning function (DA-42T)* Pressure control (DA-42T)Mechanical Fast ClampsMechanical fast clamps are equiped to change dies more convenient and safe 42CrMo ToolingsEach machine will be equipped with one set of top punch with segmented and one set of Multi V Die with different opening for various thickness of metal plateBack GaugeAHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.Backgauge Stopper FingersBack gauge stopping finger, with manual transverse movement
Technical Parameters

TYPE	Throat Depth (mm)	Worktable Length (mm)	Width (mm)	Dimension (mm)	Nominal Force (KN)	Slider Travel (mm)	Weight (kg)	Power (kw)
30t/1600	200	1600	60	2000*1800*2150	300	150	2700	4
40t/2500	200	2500	60	3000*2000*2420	400	150	4000	5.5
63t/1600	350	1600	60	3000*2000*2420	630	200	4000	5.5
63t/2500	400	2500	60	3000*2000*2420	630	200	5500	5.5
63t/3200	400	3200	60	3700*2000*2420	630	200	/	5.5
80t/2500	400	2500	70	3000*1800*2380	800	200	5600	7.5
100t/3200	400	3200	70	3730*2000*2500	1000	200	7900	7.5
100t/4000	400	4000	70	4500*2000*2500	1000	200	13000	7.5
125t/3200	400	3200	70	3750*1950*2550	1250	200	8200	7.5
125t/4000	400	4000	70	4550*1950*2550	1250	200	10000	7.5
160t/3200	400	3200	70	3800*1950*2700	1600	200	10300	11
160t/4000	400	4000	70	4600*2000*2670	2000	200	11000	11
200t/3200	400	3200	250	3800*2000*2670	2000	200	12500	15
200t/4000	400	4000	400	4600*2000*2670	2000	200	13100	15
300t/4000	400	4000	260	4800*1980*3320	3000	300	21000	22
400t/4000	400	4000	280	5100*2300*3420	4000	300	26000	30

Company Profile
Anhui Yawei Machine Tool Manufacturing Co.,ltd. was founded in 2005, the registered capital is 81.88 million, with 120 employee, floor space about 40000 square meters, the location is close to Nanjing Airport and near to Shanghai city.
We specializes in exporting CNC Hydraulic Press Brake Machine, Hydraulic Shearing machine, CNC Fiber Laser Cutting Machine, CNC Robotic Arm, with over 120 different types. Our machines, which adopt advanced technology, have a high quality. The main electrical parts, hydraulic parts and the instrument of our machines are adopted the best products made by the famous manufacturer in the world.
We have passed ISO9001 quality system certification and the European Union CE certification, etc., at the same time established a perfect market service system and the system of the mature. Based on the good quality and top technology on our machines, we sell well in various countries and regions over 90 in the world such as U.S.A, Canada, Europe, South American, Middle East, and Southeast Asia market. The history of our independent Import and Export experience is more than 15 years.
We also make OEM machines for our European Agent, all of the configuration on the machines will according European standard and approved by customer satisfied. Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at.
We want to cooperate with you to promote our sales and build a long term cooperation with you for future business.
Best wishes for you and hope a better tomorrow for all of us!
Facilities & Equipment
Customer Photo
Certification
ServicePre-Sales Service Technical and Sales team work After-Sales Service Engineers and Sales cooperate• Inquiry and consulting support. • Training how to install the machine, and how to use
• Suggest solution. the machine.
• View our Factory. • Engineers available to service machinery overseas.
FAQQ1. Are you a factory or a trading company?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 15 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time??
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.Q5. What does AHYW need to quote on my request?

---
