Boiling Range of Organic Liquids Tester

Product Details

Product Description

Product Description

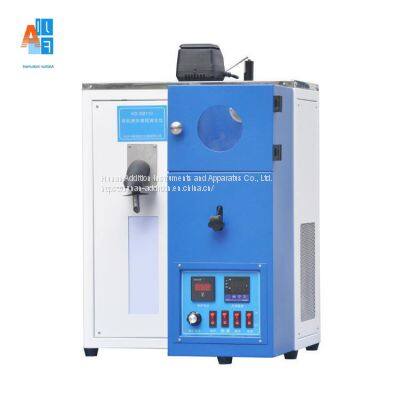

Boiling Range of Organic Liquids Tester 　
Product Model: JF7534
Product Introduction
This instrument is suitable for detecting industrial volatile organic liquids of chemical alcohols, ketones and esters that have a boiling point of 50~200℃ and can remain stable during the distillation process.
Technical Parameter
1. Applicable standard: GB/T7534
2. Temperature control method: high-quality PID digital temperature controller
3. Temperature control accuracy: ±0.5℃
4. Heating method: electric heating rod heating
5. Power of the whole machine: 3KW
6. Working unit: 1 tube
7. Circulation method: self-priming pump circulation
8. Working power supply: AC220V/50Hz
9. Temperature range: 0~80±0.5℃
10. Refrigeration method: compressor refrigeration
11. Device size: 610*500*690mm
12. Net weight: 45KG
Main Feature
1. The instrument is integral and easy to operate
2. Built-in self-priming pump imported from Taiwan for circulation to ensure that the switching experiment temperature can be completed within 5 minutes;
3. The thermostats of the hot bath and the cold bath are controlled separately;
4. Stainless steel heater;
5. Fully enclosed compressor refrigeration;
6. Built-in fan cooling distillation furnace;
7. PID temperature controller, digital display temperature, accuracy 0.1℃
8. Safety measures to prevent overheating or low liquid level;

---
