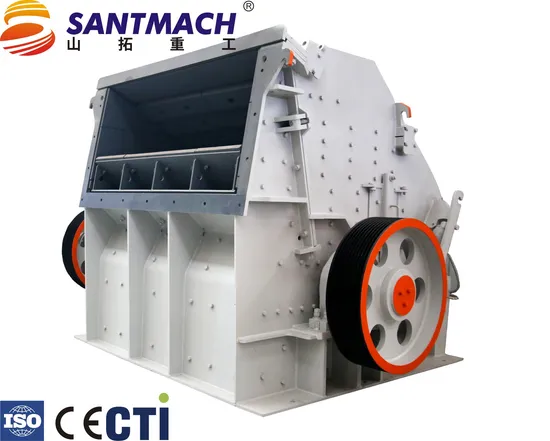

Santmachpf1214 Impact Crusher for Stone Crushing Plant Using Aggregate Crasher for Sale

Product Description

Detailed Photos
Product Advantages PFW European Impact crusher
1.High-chrome hammer plates are applled to rotor, making rotomore wear-resistant, of good dynamic and static balance and mpact- reslstant, Hammer plates can be used upside down for longer use.
2.Clear part division and accurate posifioning, Three-chambetype is suitable for tertiary crushing, and two-chambertypfor primary and secondary crushing, final products are omore cubic shape, Discharge port can be adjusted.
3.The unlque splint and wedge are matched in the plate hammfixing device, which makes the hammer plate muchmore reliableand easler to change.
4. Equlpped with hydraulic frame opening device, and thepare pars such as hammer can be chan,ad auickly.. Hydraulic adjustment device lis used, so the discharging size can be changed quickly, reducing the downtime andmaintenance time.
5. Integral cast steel structure is adopted for bearing seat, and radial strength of the bearing seatis highly strengthened
Product Parameters

Model	Specifications(mm)	Input port size(mm)	Input size(mm)	Capacity(t/h)	Power(kw)	Weight(t)	Length*width*high (mm)
PFW1214	Φ1150×1400	570×1430	250	90-170	132	16	2550*2310*2100
PFW1215	Φ1300x1500	625x530	300	180-270	200	20	2960*2570*2380
PFW1415	Φ1400x1500	800x1530	350	280-350	250	22.5	3120*2650*2660

Product Description Combining outstanding manufacturing process and accurate analytic technique, European Type Impact Crusher has been launched to market. This machine takes advantages of safety operation and large carrying capacity, particularly, the semi automatic adjusting device highlights intellectualization and advancement.
