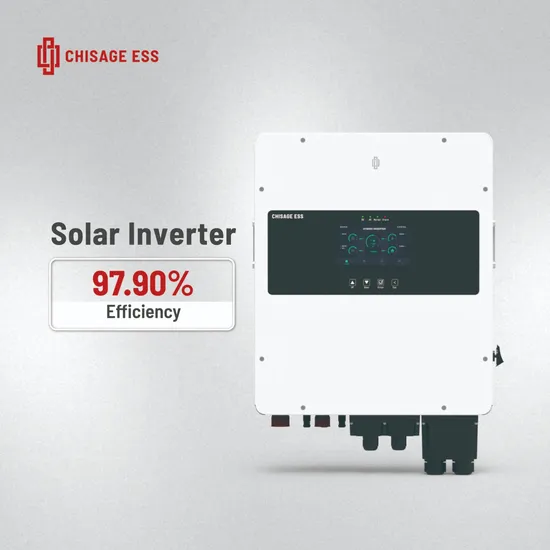

High Quality 3 Phase DC AC Smart Low Frequency Solar Inverter 8kw Photovoltaic Inversor Pure Sine Wave Solar Energy Hybrid Inverter for Home Solar System

Product Description

Specification

Technical Data
Model	Mars-5G1-LE Mars-5G2-LE	Mars-6G1-LE Mars-6G2-LE	Mars-8G1-LE Mars-8G2-LE	Mars-10G1-LE Mars-10G2-LE	Mars-12G1-LE Mars-12G2-LE	Mars-14G1-LE Mars-14G2-LE
Battery Input
Battery Type	Lead-acid or Li-Lon
Battery Voltage Range (V)	40~60
Max. Charge Current (A)	120	130	200	220	250	280
Max. Discharge Current (A)	120	130	200	220	250	280
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-Adaption to BMS
PV String Input
Max. DC Input Power (W)	7500	9000	12000	15000	18000	20000
PV Input Voltage (V)	650 (160~800)
MPPT Range (V)	200~700
Full Load DC Voltage Range (V)	260~650
Start-up Voltage (V)	160
PV Input Current (A)	17+17			26+17
Max. PV Isc (A)	20+20			34+20
No. of MPPT Trackers	2
No. of String per MPPT Trackers	2/1	2/1	2/1	2/1	2/1	2/1
AC Output
Rated AC Output and UPS Power (W)	5000	6000	8000	10000	12000	14000
Max. AC Output Power (W)	6000	7200	9600	12000	13200	15400
Peak Power (off grid)	2 times of rated power, 10s					18000w,10s
AC Output Rated Current (A)	7.3	8.7	11.6	14.5	17.4	20.3
Max. AC Current (A)	10.8	13	17.4	21.7	26	26
Max. Continuous AC Passthrough (A)	26	26	26	26	26	26
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage (V)	50/60Hz, 380/400Vac(Triple phase)
Grid Type	Three phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency	97.90%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV Arc Fault Detection	Optional
Output Over Voltage Protection	DC Type II / AC Type III
Certifications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11
Safety Regulation	IEC/EN62109-1, IEC/EN62109-2
EMC	IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (°C)	-45~60, >45 Derating
Cooling	Smart Cooling
Noise (dB)	≤45
Communication with BMS	RS485; CAN
Weight (kg)	38	40	42	44	44	45
Dimensions (mm)	550W×730H×290D
Protection Degree	IP65
Installation Style	Wall-mounted

Why Choose Us
FAQ
·Q1: Are you a factory or trading company?
We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team.
Chisage ESS prioritizes innovation and reliability, committed to delivering top-tier solutions to our customers.
·Q2: What is the MOQ?
The MOQ is 1 unit, and for items in stock, we will ship within 7 business days.
·Q3: Do you accept custom products?
Yes, OEM and ODM is supported.we have a professional R&D team with over 20 years of experience and a wealth of customisation experience to provide you with professional customisation support including but not limited to packaging, functionality etc.
·Q4: What is your after-sales service?
a. More than 10 after-sales team members to provide online service 7x24 hours a day throughout the year
b. We offer product replacement for quality issues during the warranty period.
c. We provide flexible training and warranty services, strictly adhering to the warranty terms.
d. For purchases of more than 5000 units, we set up a technical support centre in your city for comprehensive support.
·Q5: What's the payment term?
We support a variety of payment methods, such as T/T, L/C, Ali-baba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.
Support on/off grid mode switch, EPS output. Colorful 5-inch touch LCD, IP65 protection degree.ARC fault detection optional
Chisage ESS is a professional manufacturerof Solar Inverters, Lithium ion Batteries, PV Panels, commercial and industrial hybrid inverter, container BESS, household high voltage all in one ess, portable power station for residential and industrial system solution, supporting OEM & ODM.

---
