Advanced CNC Machine, Milling Tool for Soft Metals and Alloys

Product Description

Discover the pinnacle of precision and speed with our top-selling high-speed Advanced 3/4/5 Axis CNC Milling Machine, designed to meet your most demanding machining needs.
Product Description
Model: TZ-V1165 Introducing the Line Rail Vertical Machining Center—an epitome of cutting-edge innovation and a new generation of CNC machine tools. Expertly engineered with ergonomic and precision manufacturing principles, alongside state-of-the-art automation technologies, this machine has been refined through exhaustive simulation analysis and prototype validation. Positioned at the forefront of technological advancement, it serves as an indispensable tool across a multitude of industries. Ideal for sectors such as medical, UAV, new energy automotive parts, precision fixtures, and automation equipment components, this machine excels in the mass production of high-precision parts, delivering unparalleled efficiency and accuracy.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

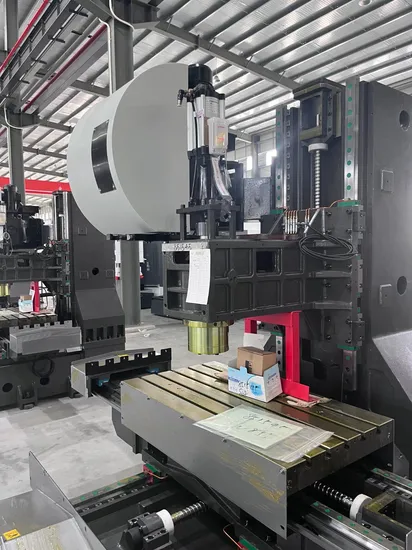

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
Benefit from optimal processing conditions within a meticulously maintained production environment, ensuring peak performance. Outfitted with imported horizontal and vertical machining centers, CNC boring machines featuring rotating tables, and gantry guideway grinding machines, this comprehensive setup guarantees unmatched workpiece accuracy. This significantly enhances assembly precision while ensuring the accuracy remains consistent over time.
State-of-the-Art Detection Methods Adhering to stringent German VDI3411 inspection standards, our sophisticated laser-based positioning accuracy tests and meticulous corrections are executed five times, guaranteeing ultimate precision.
Each machine tool is subjected to rigorous processing tests before it leaves the factory, assuring its readiness to meet the exacting real-world processing standards and accuracy requirements.
Product sample
• The CNC machine center effortlessly integrates milling, drilling, and tapping functions, offering a seamless experience. • Discover the versatility of CNC machining applied to a diverse range of metal profiles, including aluminum, steel, copper, and an assortment of non-metal materials. • Extensively utilized in the 3C electronics, rail transportation, and aerospace industries, CNC Vertical Machine tools offer extraordinary precision, particularly in linear module guide rail applications.• And more.
Packaging & Shipping
•Highly Protective Measures
•Ensured Structural Stability
•Eco-friendly and Recyclable Solutions
Professional Team
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

---
