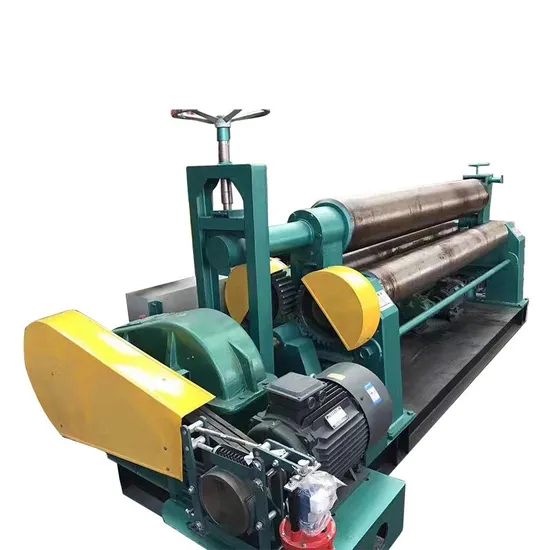

2023 Hydraulic Three Roller Plate Bending Machine 20mm Thickness Plate Rolling

Product Description

The plate rolling machine is a kind of equipment that uses the work roller to bend and form the plate. It can form parts of different shapes such as cylindrical parts and conical parts. It is a very important processing equipment.
The working principle of the plate rolling machine is through the action of external forces such as liquid pressure and mechanical force, so that the work roller movement, so that the plate bending or rolling forming. According to the rotating movement and position change of the work roller of different shapes, the parts such as oval parts, curved parts and barrel parts can be processed.
Product Parameters

W11-20×2500
Maximum roll width	2500mm
Working length of roll surface	2550mm
Maximum coil thickness	20mm
Full load minimum coil diameter	φ750mm
Yield limit of sheet	δs≤245Mpa
Upper roll diameter	340mm
Lower roll diameter	280mm
Two lower roll center distance	440mm
Coil speed	About 5m/min
Upper roller pressure speed	About 30mm/min
Main motor power	22kw
Auxiliary motor power	7.5kw
Doundary dimension	5.2×1.5×1.8m

Main Parts
Lifting Screw AssemblyScrewTurbo AssemblyReducer Advantages
1.Our three rolls are all made of superior forged circles, which are rough processed, quenched and tempered, finished, and quenched. The material is durable and has high surface hardness. Compared with ordinary round steel or even hollow rolls used in other areas, It is not the same product.
2.The chassis and wall panels of our plate rolling machine are processed as a whole after welding and forming. The materials are abundant and high-precision, and the welding process of loose parts is not used.
3.As for accessories, the motors and reducers of our plate rolling machine are all locally produced high-quality products, and the electrical appliances are Siemens, with stable overall performance, low failure rate and long service life.
Application

Factory
* About Jinan Lingxiu Laser Equipment Co., Ltd.
is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit
Our Team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:In order to recommend a more suitable machine for you, please tell me:
1. The material you want to roll
2. Material thickness and width
3. Minimum roll diameter. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, if you have any questions, you can contact us any time, 24x7, we always here.

---
