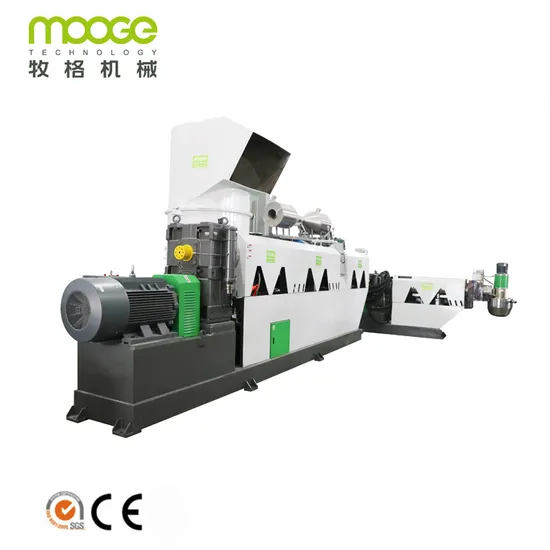

Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine

Product Description

Waste PP/PE/LDPE/HDPE/BOPP Film & Woven Bag Plastic Granulator/Pelletizing Machine /Granulating Line / Recycling Line
Product Description
1.Waste Plastic film / bags after washing recycling ,we can use this machine to making plastic granules.
New granules After Blow molding or Injection ,it can be used to making new plastic product.Such as plastic film,plastic bags,plastic bottle,plastic pallet,plastic box,plastic barrel etc.
2.this machine suit for PP/PE/LDPE/HDPE/BOPP Film & Woven Bag and other plastic.
3.We supply single stage or double stage (Mother and baby type).
Product Parameters
We have different capacity from 100kg/h to 1000 kg/h of this RSS-Series waste plastic granulator machine for your choice.
We can also design the layout in "L" or "U" type according to your special requirements.

Model	Screw diameter:mm	Screw L/D	Main Motor Power:KW	Capacity:KG/H
RSS-SJ 85	85	25~35:1	55	150-200
RSS-SJ 100	100	25~35:1	75	250-300
RSS-SJ 130	120	25~35:1	90-110	400-500
RSS-SJ 150	150	25~35:1	110-132	500-600
RSS-SJ 160	160	25~35:1	132-160	600-800
RSS-SJ 180	180	25~35:1	160-200	800-1000
RSS-SJ 200	200	25~35:1	185-225	1000

PE PP Film/bags flakes extruder layout:
1.Conveyor belt → 2.Semi automatic metal detector →3.Compactor force feeder→4.The first stage extruder→5.Without Wire mesh filter hydraulic changer(it can increase 10% capacity than normal hydraulic chnager,but the total cost will be increased,we usually use normal hydraulic changer)→6.the second stage extruder →7.normal hydraulic changer →8.Die face cutting system→9.Water cooling tank→10.Centrifugal dewatering machine→11.Vibrator screen machine→12.Air conveyor & Storage silo
Working Flow

S/N	Item Name	Qty
1	Feeding Conveyor Belt with metal detector for PP PE film	1 SET
2	Agglomeration Compactor Feeder for film	1 SET
1-1	Screw Loader for HDPE flakes	1 SET
2-1	Dosing feeder for HDPE flakes	1 SET
3	SJ150/30 Single Screw Extruder (First Stage)	1 SET
4	Hydraulic Screen Changer	1 SET
5	Material Separated Die Head	1 SET
6	SJ150/12 Single Screw Extruder (Second Stage)	1 SET
7	Hydraulic Screen Changer	1 SET
8	Die face cutting system	1 SET
9	Water cooling tank	1 SET
10	Dewatering machine	1 SET
11	Vibration screen	1 SET
12	Air Conveying System	1 SET
13	Silo	1 SET
14	Electric Control Cabinet	1 SET
15	Free Spare Parts	1 SET

Detailed Photos
After Sales Service
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
FAQ
• What material do you want to recycling? PE film? PP woven bag? PE/PP bottle? or others?
• What capacity(kg/h) do you want?
• Your material is dirty or clean?
• Other special requirements about the plastic granulator line you want.

---
