Good Performance Electric Chain Hoist

Product Description

Hot Selling CE certified 1 ton Endless electric chain hoist
HKD0102S: 1 ton electric chain hoist only with hook, 2 chain fall, single lifting speed.
Details:
Capacity: From 0.5 to 20T Wire Rope length: 6-30m Voltage: 380/440V
Hoist Type: With hook, with manual trolley, with electric trolley, with low headroom.
Catalog:

Model	Capacity (ton)	Lifting height(m)	Lifting speed(m/min)	Chain Falls	Lifting Motor
					Power(kw)	Rotation Speed(r/min)	Phases	Voltage (V) & Frequency (Hz/s)
EEC00501	0.5	3	6.8	1	0.75	1440	3	380,50
EEC0102	1	3	3.4	2	0.75
EEC0101	1	3	6.6	1	1.5
EEC0201	2	3	6.6	1	3
EEC0202	2	3	3.3	2	1.5
EEC0301	3	3	5.4	1	3
EEC0302	3	3	4.4	2	3
EEC0303	3	3	2.2	3	1.5
EEC0502	5	3	2.7	2	3

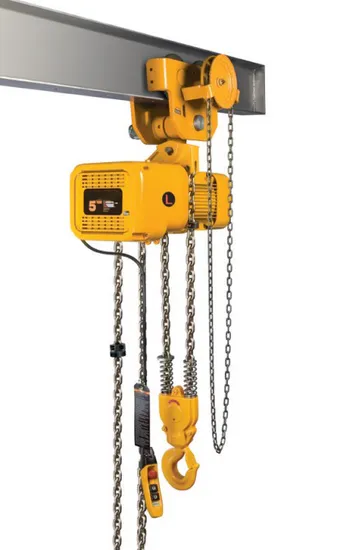

Picture:
Introduction: High quality electric endless chain hoist is one of the most popular chain hoist throughout the world.
Description:
Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
24V/36V device: it is used to prohibit the emergencies from occurring in case of the leakage in the switch.
Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
Chain bag: It shall be light, handsome and durable.
Chain: The chain shall adopt the Japan FEC80 ultra heat-treatable steel alloy chain.
Features:
Sheel: It is made of light aluminum alloy sheel, light but hard. The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service.
Side magnetic braking device: The magnetic orce generator is the latest design which is featured for generating magnetic force. It allows instant brake as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed.
Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
Chain: The chain shall adopt the Japan FEC80 ultra heat-treatable steel alloy chain. It can be safety used in poor environments such as rain sea water and chemicals.
Hook: It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety tongue piece.
Support frame: The loading support frame consists of two steel plates, which is extremely sturdy.
Transformer: 24V/36V transformer device is a kind of device which is used to prohibit unexpected accidents caused by electric leakage and guarantees the safe use while raining.
Electromagnetic contactor: Electromagnetic contactor can be used safely under high frequency.
Inverse phases sequence protecting device: It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.
Push button:
Waterproof push button is applied. It is light and durable.
Package:
Standard strong PLY wooden case
Strong wooden pallet.
Company Introduction
Tianjin Eastern Union I&E Co.,Ltd is one of the leading Exporters, Stockist & Suppliers for Lifting Items for the last 10 years.
It's a matter of great pleasure to inform you that we are having cordial business relation with many different fields corporations and manufacturers throughout the world. It is needless to emphasis that in view of our vast experience in the line we are in a position to meet your valued requirements of Lifting Equipment and Hand Tools and Items of every description and specifications at moderate price.
Sincerely welcome your inquiry and trail order. We are looking forwad to the firm and long-term business relationship with you.

---
