Wholesale New Products 4 Axis Router Woodworking CNC Machine CNC Router Atc Router with Factory Outlet

Product Description

Product Description

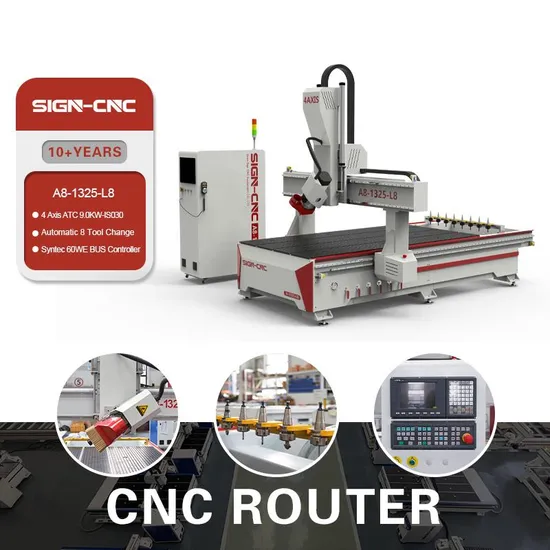

Wholesale New Products 4 Axis Router Woodworking CNC Machine CNC Router ATC Router With factory Outlet
Detailed Photos
Product Parameters

Model	A8-1325-L8	A8-1530-L8	A8-2030-L8
Working area	1300*2500mm	1500*3000mm	2000*3000mm
Z feeding	400mm (option max height 600mm)
Frame structure	Steel casting-welding
Type of table cover	Vacuum table with T-slot
Vacuum pump	5.5kw air cooling
Z axis transmission	Ball screw and 25 square guide rails
X Y axis transmission	25# square guide rails + Helical rack
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	HQD atc 9.0 KW
Spindle rotate	Left and right 180 degree
Tool Magazine	8 - 12
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
Drive motor type	Syntec 1000w servo motor and driver
operating system	Taiwan SYNTEC 60WE bus control
Dust Collector	3kw with double bags
Lubrication system	Automatic
Supported software	Artcam software, Type3 software
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	Two years

Application and Sample
Applications Materials
1.Woodworking:wooden door and furniture,windows,tables and chairs,cabinets and panels,
3D wave plate,MDF,computer desk,
musical instruments,etc
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,
literal-hole cut,lightbox mold,stamp,mould
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC,etc

Packaging & Shipping

Company Profile
After Sales Service
1.Two year warranty time, we can repair and replace parts for free in 2 year.
2.Technical support in 24 hours online, such as whatsapp,Skype, E-mail,facebook,ect.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
If you have any needs, please feel free to contact us. Welcome to inquire.

---
