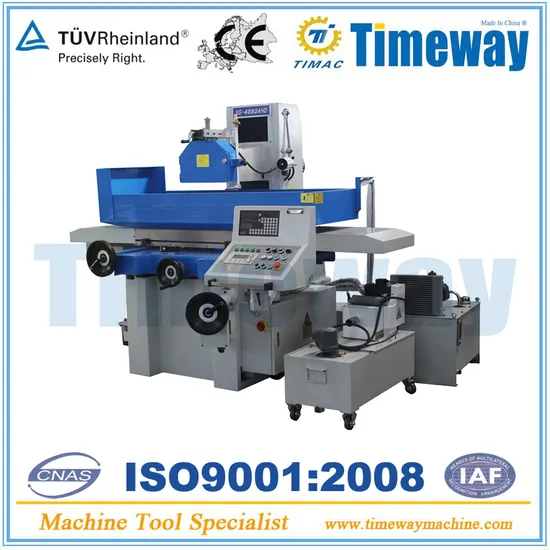

400X1000mm Surface Grinding Machine

Product Description

Hydraulic Surface Grinding Machine ( Saddlve Moving Type)
* AH: SG-2050AH, SG-2550AH, SG-3060AH, SG-30100AH, SG-4080AH, SG-40100AH
Auto. feed on transverse,
Hydraulic transmission on longitudinal,
Manual on vertical;

* AHR: SG-2050AHR, SG-2550AHR, SG-3060AHR, SG-30100AHR, SG-4080AHR, SG-40100AHR
Auto. feed on transverse,
Hydraulic transmission on longitudinal,
Rapid movement on vertical;

* AHD: SG-2050AHD, SG-2550AHD, SG-3060AHD, SG-30100AHD, SG-4080AHD, SG-40100AHD
Auto. feed on transverse,
Hydraulic transmission on longitudinal,
Auto. feed on vertical;

Specification		Unit	SG-2050AH	SG-2550AH	SG-3060AH	SG-30100AH	SG-4080AH	SG-40100AH
			SG-2050AHR	SG-2550AHR	SG-3060AHR	SG-30100AHR	SG-4080AHR	SG-40100AHR
			SG-2050AHD	SG-2550AHD	SG-3060AHD	SG-30100AHD	SG-4080AHD	SG-40100AHD
Working area
Table dimensions		mm	200x508	254x508	305x635	305x1020	406x813	406x1020
Max longitudinal travel		mm	560	560	765	1130	910	1130
Max cross travel		mm	240	275	340	340	450	450
Max.distance from spindle center to surface		mm	450	450	580	580	580	580
Electrical magnetic chuck dimensions		mm	200x460	250x500	300x600	300x1000	400x800	400x1000
Max.loading capacity include (magnetic chuck)		kg	180	180	270	400	500	600
Three axis movement
Worktable longitudinal movement speed		m/min	7~23
Worktable transverse movement	Auto. intermittent feed	mm/stroke	0.1-8
	Rapid speed	mm/min	990
	Feed of hand wheel	mm/div	0.02
Wheel head vertical movement	Auto down feed	mm	---(AH/AHR mode), 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
	Rapid speed	mm/min	---(AH mode),610(only for AHR model), 480(only for AHD model)
	Feed of hand wheel	mm/div	0.005
Grinding wheel
Speed		mm	2850 (50Hz), 3450(60Hz)		1450(50Hz), 1750(60Hz)
Size (OD*W*ID)		mm	200x20x31.75		350x40x127
Motor
spindle Motor		kw	2.2		4/5.5
Hydraulic pump motor		kw	0.75		2.2
Colling pump motor		kw	0.04		0.125
Elevating motor		kw	---(AH model), 0.25(AHR model), 0.5(AHD model,servo motor)
Cross feed motor		kw	0.04
Total rated power		kw	3.7		7.5/9
Machine
Height of machine		mm	1675		1890
Floor space (L*W)		mm	2300x1600		2900x2200	440x2200	3600x2400	4400x2400
Gross weight		kg	1650	1800	2800	3200	3400	3900
Package dimension (L*W*H)		mm	2000x2100x2175		2350x2220x2150	2980x2220x2210	2850x2270x2180	2950x2270x2210

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
