Automatic Solvent Based Dry Lamination Machine for BOPP Pet PE

Product Description

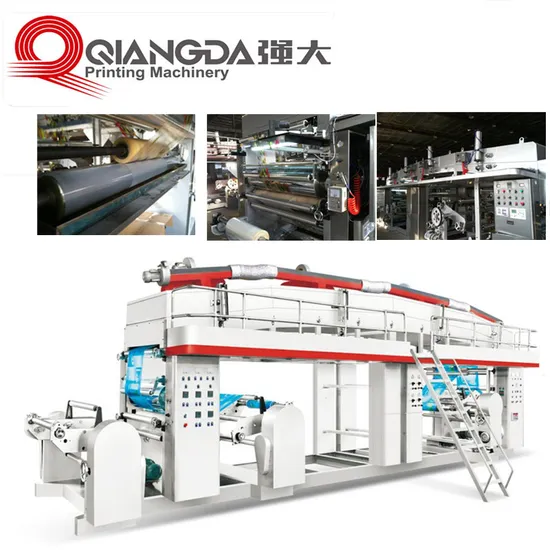

QDF Model Series of Photoelectric Error-correction High-speed Laminating Machine


PRODUCT DESCRIPTION
Machine is this series are suitable for reel-shape materials such as BOPP,PET,CPP, PE, Aluminum Foil, and paper, 2 layer repetitious laminating, high stretch production, producing high-quality compound materials with high freshness preserving, and boiling & steaming resistance.

MAIN TECHNICAL PARAMETERS

Model	QDF-1000
Suitable material	BOPP,PET,PE,Aluminum foil, Paper etc...
Max width of gluing roller	1050 mm
Max width of laminating roller	1050 mm
Max width of laminating	1000 mm
Laminating layers	2 layers
Mechanical speed	10-140 m/min
Laminating speed	10-120 m/min
Unwind diameter	Φ 800 mm
Rewind diameter	Φ 800 mm
Heating length	8 m
Oven temperature	120ºC
Width of guide roller	1030 mm
Width of machine body	1280 mm
Main motor drive	4 KW
Total power	About 90 kw
Weight	About 10 Ton
Overall dimensions	9600(L)×2850(W)×3300(H) mm
Machine color	Red-white

MACHINE DETAILS &WORKSHOP

ABOUT US ---- WENZHOU QIANGDA PRINTING MACHINERY CO.,LTD
Company Brief Introduction
Wenzhou Qiangda Printing Machinery Co.,Ltd was founded in early stage of1980s,having Ruian Qiangda Printing Machinery Co., Ltd .as its predecessor.Presently,it covers an area of 46000m²,has 300 employees,and up to 70 sets of production facilities such as imported digital control machining centers.Specialized in fabricating soft package facilities such as printing presses,laminating machines,splitting machines ,yew paper printers,yew paper bronzing machines.it is among the most powerful and famous enterprise in the same circle in China,and has its unique technique and experience :based on the market demands ,this company is the first to successfully develop a new performance and operation target of which have overtaken the level of domestic similar products.:its products is sold all though China ,and imported to tens of countries and regions such as South-East Asia,Middle -East,Russia ,South American ,and Africa,receiving good graces from users everywhere.
ENTERPRISE HONORS

PACKING & DELIERY

CONTACT US




FAQ
1.Are you a manufacturer?
Yes, we have been in making printing machine over 37 years.

2.What about the payment term ?
Mostly 30%T/T in advanced, the rest need be paid by TT before shipping.if nessary,can do L/C.

3.machine adjustment and installation
We can send technicians go to customers' country for machine installation and adjustment.
4. Quantity and quality guarantee
Quantity/Quality Discrepancy to destination port during transportation: In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination.
Guarantee period and after-sales services: 12 months since installation finish and machine normal working. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price.
Long-term service: We will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.
5. Validity: 60 days since the quote date
Thanks for your attention! Sincerely hope to work with you in near future!
