Product Details
Product Description
Product Description

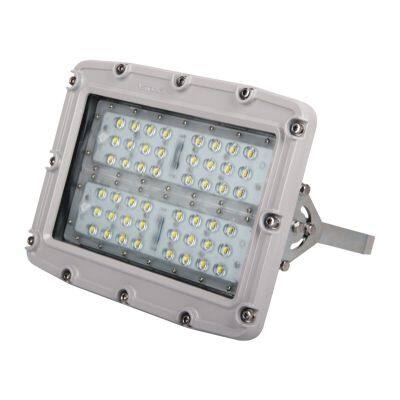

DGS Series Mine Flame-proof LED Laneway Lamp
Application
DGS series Mine Flame-proof LED Laneway Lamp is applicable to class 1 coal mine laneway, chamber and other places of fixed lighting.
Product Feature
1. Flameproof design, constant current power as led drive, and wide range input voltage.
2. High-strength aluminum alloy die-casting molding shell, beautiful and generous appearance, and compact structure.
3. High-strength, corrosion resistance, waterproof and dustproof, impact resistance, long lifetime, easy to install and maintenance.
4. The connection cavity, the power supply cavity and the light source cavity are the three-chamber separation structure, effectively reduce the temperature of the power supply cavity and the light source cavity, and ensure the long lifetime of the light.
5. Professional lens with light distribution design, rectangular light, and Good lighting effect.
Main specification
Item
| Specification
|
Rated power(W)
| 20
| 30
| 40
| 50
| 60
| 70
| 80
|
Operating voltage
| AC（85-265）V
|
Power factor
| >0.9
| >0.95
|
Rated luminous flux (lm)
| 1600
| 2400
| 3200
| 4500
| 5400
| 6300
| 7600
|
Protection grade
| IP65
|
Corrosion-proof grade
| WF2
|
Inlet thread
| G3/4
|
Outer diameter of cable
| φ10～φ15 mm
|
Service life
| 50000h
|
Color temperature
| (4500～6000)K, User-optional
|
CRI
| >70
|
Explosion-proof type
| Coal mine environment
| Ex d I Mb
|
Dimensions
| 340×150×250mm
| 340×240×250mm
|
Weight
| 4.5kg
| 6.8kg
|
|
|
|
|
|
|
|
|
|
Matching information
Optional device
| Explosion-proof connecting box, explosion-proof pipe joint, installing support
|
Product certification
MA certificate No.
| DGS20/127L(A):MAH170090
| DGS30/127L(A):MAH170091
| DGS40/127L(A):MAH170089
|
DGS50/127L(A):MAH170087
| DGS60/127L(A):MAH170092
| DGS70/127L(A):MAH170086
|
DGS80/127L(A):MAH170088
|
|
|
>>
