Heavy Duty Crawler Excavator with 22t Capacity and Multifunction Features

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
CT230-8C(22t)Heavy Duty Crawler backhoe excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
10005*2810*3150(L*W*H)
Swing Speed 10.5 Rpm
Operating Weight 22100 Kg
Bucket Capavcity 1.1 M3
Engine Power 120kw/2000rpm
Travel Speed 3.3km/5.2 Rpm
Ground Pressure 47.1 Kpa
Bucket Digging Force 139 Kn
Travel Speed 4.8 Km/3.3 Rpm
Fuel Tenk Capacity 410 L
Min Swing Radius 3203 mm
Max Dumping Height 7000mm
Hydraulic Tank Capacity 295 L
Arm Digging Force 110 Kn
Upper Structure Width 2700 mm
Track Shoe Width 600 mm
Transport Package
Nude Packing
Specification
CE, ISO9001
Trademark
CARTER
Origin
Shandong, China
HS Code
8429521200
Production Capacity
100 PC/Year

Product Description

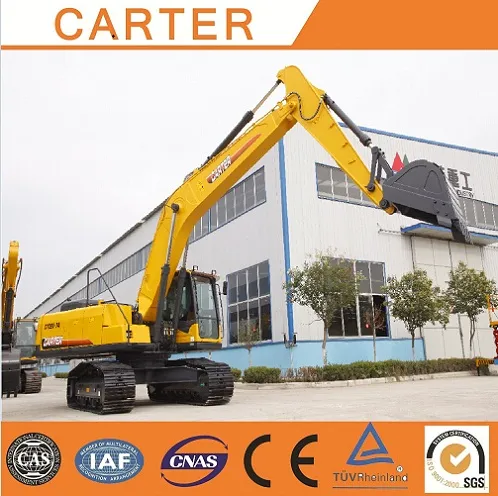

CT230-8C Crawler Excavator:
1. CT230 series excavator is a new model which adopts the features of modern hydraulic excavators, and it can meet various jobs.
2. The CT230 series excavator is designed according to principles of high efficiency, reliable performance, strong power.
3. It adopts originally imported engines and hydraulics. The new technology application on boom/stick/chassis/upper structure/swing system make it more fit for hard jobs such as mining jobs.
4. CT230 series excavators meets the jobs demands such as earthmoving, river clearance, projects construction and especially for large mines.
Engine Travel System
Model ISUZU 4HK1X Travel motors KYB, Japan;
Type Turbocharged, 4 stroke, Direct injection, water cooled, with air-air intercooler Support roller quantities 2×8
Carrier roller quantities 2×2
No. of cylinder 4 Travel shoes 2X47
Bore and stroke 115X125(mm) Travel speed 3.3/5.2(km/h)
Displacement 5.193L Drawbar pulling force 134.8kN
Power output 120kw/2000rpm Gradeability 70%(350)
Max. torque 657N.m/1500rpm Track shoe thickness 10mm
Hydraulic System Cab & Electrical System
Main Pump KPM, Japan Cab Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system
Type axial piston pump
Max. discharge flow 2x230(L/min)
Max. discharge pressure
Boom, arm and bucket 31.4/34.3 MPa Voltage 24V
Travel circuit 34.3 MPa Batteries 2X24V
Swing circuit 27.5 MPa Battery capacity 240Ah
Control circuit 3.9 MPa Boom, Arm & Bucket
Pilot control pump Gear type Boom cylinder Ф120xФ85xS1335-L1870
Main valve KYB, Japan Arm cylinder Ф135xФ95xS1490-L2075
Oil cooler Air cooled type Bucket cylinder Ф115xФ80xS1120- L1680
Swing System Refilling Capacity & lubrication
Swing motor KPM, Japan Fuel tank 410 L
Swing motor type Axial-piston motor Cooling system 26 L
Hydraulic oil released Hydraulic oil released Engine oil 22 L
Hydraulic disc brake Hydraulic disc brake Hydraulic oil tank 195 L Tank Oil Level
Swing speed 10.5r/min 295 L Hydraulic System
Bucket
Type Backhoe bucket
Bucket capacity 1.1 m3 (SAE)
Bucket capacity scope 0.92-1.10 m3
Number of bucket teeth 5
Bucket width 1270 mm
Working Ranges
Boom length 5700mm
A Max. digging radius 9982mm
B Max. digging depth 6622mm
C Max. digging height 9970mm
D Max. dumping height 7000mm
E Min swing radius 3203mm
F Max. vertical wall digging depth 5900mm
G Max. digging reach at ground level 9975mm
Digging Force (ISO6015)
Arm length 2925mm
A Bucket digging force 139KN
B Arm digging force 110KN
Overall Dimensions
A Track grounding length 3480mm I Track shoe width 600mm
B Track length 4174mm J Overall width 2810mm
C Counter weight ground clearance 1075mm K Overall length 9650mm
D Tail swing radius 2850mm L Overall height(to top of boom) 2780mm
E Overall height(to top of cab) 3007mm M Track height 810mm
F Revolving frame width 2736mm O Ground contact length 4780mm
G Min Ground clearance 465mm P Track shoe thickness 10mm
H Track gauge 2210mm Q Distance from swing center to tail 2850mm

Operating Weight and Ground Pressure
Operating weight includes basic machine;
Operating weight 22100 Kg
Ground pressure 47.1 KPa
