8Mpixel~10Mpixel 50mm 2/3" Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion -0.037% AI 3D Positioning Industrial Recognition 4K C Mount Optics

Product Details

Product Details

Product Description

Product Description
Really Suggested Lens if target price is low, but don't want worse quality or low quality lens, this serial is the right one to you.
Whatsapp: 008618949838193
Wechat/Skype: soyocctv
Email: sales@soyocctv.com
Really Suggested Lens if target price is low, but don't want worse quality or low quality lens, this serial is the right one to you.
Whatsapp: 008618949838193
Wechat/Skype: soyocctv
Email: sales@soyocctv.com

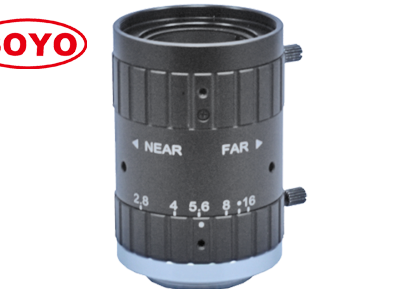

50mm 2/3" 8Megapixel Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion -0.022% AI 3D Positioning Industrial Recognition 4K C Mount Optics
High resolution : 8megapixel can used at 10Megapixel camera
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Low distortion : -0.022% low distortion
Compact size : Very compact small size match all area applications.
Application : Positioning, Inspection for medical, life science, SMT, AOI.
Model
SMV5028G-8M
Format
2/3” (Φ11mm)
Resolution
8.0 Megapixel
Focal Length
50mm
Aperture (Close)
F2.8 Manual iris
Field of View (°)
2/3"
58*46*35mm | 12.5*10*7.6°
1/2”
42*34*25mm | 9.2*7.3*5.5°
1/3”
32*25*19mm | 6.9*5.5*4.2°
M.O.D
30mm
Distortion TV
-0.022%
Filter Size
M34*0.5mm
Magnification
-0.19X @300mm WD
T.T.L
63.72mm
B.F.L
13.5mm
CRA

Dimension
Φ37*49.3mm
Mount
C
Weight
115g
Marks
-10℃~+50℃
