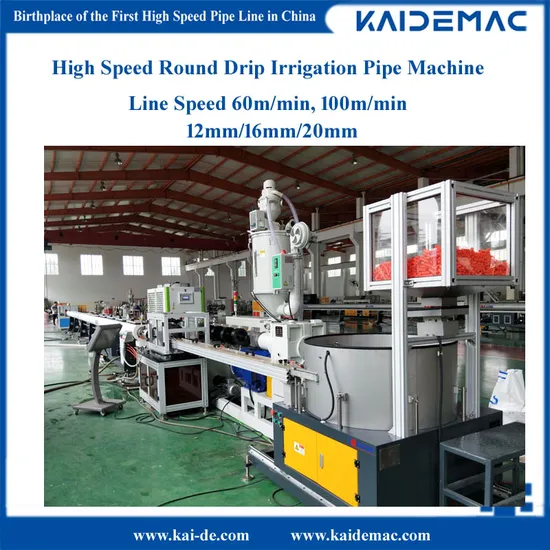

Round Drip Irrigation Pipe Making Machine 6mm/8mm/12mm/16mm/20mm

Product Description

The Round Drip irrigation pipe machine, is independently developed by KAIDE company, with high highest speed and stable performance.Have been exported to many countries and areas: Egypt, Iran, Saudia Arabia, Morrocco, Cyprus, Mexico,Ukraine, Russia, Korea, etc...
LINE SPEED OPTIONS

Line Model	Screw Diameter	L/D	Production Scope	Production Speed	Nominal Power
SJ-75	Ф75mm	36:1	Ф12-20mm	100m/min	121KW
SJ-60	Ф60mm	36:1	Ф12-20mm	60m/min	85KW
SJ-50	Ф50mm	30:1	Ф12-20mm	35m/min	37KW

Dripper sorting & conveying system
This drip irrigation pipe line adopted centrifugal screening device for drippers screening & sequence. With below advantages,:
(1)High precision screening
(2) Dripper identifying speed 400-800pcs/min which ensure the precise dripper supply during high speed production.
Punching system
(1)The round drip irrigation pipe line adopted mechanical punching mode, automatically tracking the pipe production speed, guaranteed the accuracy of punching position.
(2)2 or 4 or 6 Holes punching
(3) Punching speed: 400-800pcs/min
Synchronous control PLC System
The synchronous control is realized from dripper feeding, screening & sequence, conveying & inlaid, haul-off, to punching and coiling, which ensures the precise control and stable running of high speed production.
Technical Specification

PIPE DIAMETER	12mm,16mm,20mm
Suitable dripper mode	PC dripper or Non-PC dripper
Suitable dripper length	30-75mm
PIPE THICKNESS	0.5-1.2mm
Suitable work pressure	0.1-0.32MPa
Dripper Spacing	>=100mm
Production speed	>=60m/min, dripper spacing 300mm
Dripper identifying speed	400-900 pc/ min
Punching speed	400-800 times/min
Punching hole Number	2holes
Punching rotating speed	60,000 r/min
Haul-off speed	>=100 m/min
Coiling speed	>=120 m/min
Package	100-600m per roll(φ16mm)

(1) Drip irrigation pipe is widely used in greenhouse, greenhouse, field crops, especially for vegetables, fruits, flowers, nursery, landscaping and other economic crops. Drip irrigation pipe is very suitable for the greenhouse, field crop irrigation, garden and fruit tree greening irrigation in the area of water resources and labor shortage
(2) Drip irrigation pipe can save water and fertilizer and improve economic benefits. At present, drip irrigation is the most commonly used water-saving irrigation method in arid and water shortage areas. Drip irrigation technology can make water utilization rate reach 95%.
For More information, please feel free to contact us !

---
