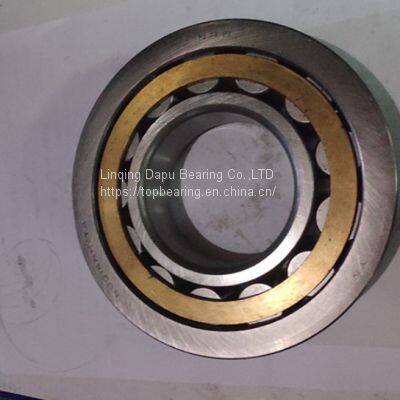

nsk ntn koyo nachi cylindrical roller bearing
Cylindrical Roller Bearing
A radial cylindrical roller bearing consists of an inner and/or outer ring, a roller retaining cage and a complement of controlled contour cylindrical rollers. Timken cylindrical bearings provide the highest possible radial load capacity compared to other roller bearing types. Three basic styles are available to meet a variety of application requirements: One-row Cylindrical Bearings: Available in six types. Each has the same cage type, but inside and outside ring configurations vary to accommodate different application designs.
Two-row Cylindrical Bearings: Customized designs are available upon request (currently not a standard catalog item) and offer added radial capacity over traditional one-row types.
Four-row Cylindrical Bearings: Has an extremely high radial load capacity, but no thrust capacity. Mostly used in roll neck applications in the metals industry. FEATURES OF CYLINDRICAL ROLLER BEARINGSThe design allows linear contact of the cylindrical rollers with the raceways resulting in excellent radial load and impact load capacity The rollers have a slight crown to relieve the ends and reduce stress concentration The geometry allows for accurate machining to precision grade quality and use at high speeds The inner or outer rings can be separated, simplifying mounting and removal of the bearing The N and NU type with flanges only on the outer or inner rings, allow for shaft movement and thermal expansion but will not carry axial load Types NJ and NF have flanges on each end of the inner or outer races and a single flange on the inner or outer race to carry axial load in one direction The NUP and NH use a loose rib and thrust collar on the inner race to allow some axial load capacity in both directions Double row cylindrical like single row cylindrical, are available with either a separable inner or outer race Double rows are available with either a cylindrical or tapered bore Double row cylindrical can also be provided with lubrication holes and grooves in the outer ring Four row designs are used mainly on rolling mill roll necks were heavy radial load capacity is required Cage types are pressed steel, machined copper alloy, and pin type MAIN APPLICATIONSAUTOMOTIVE: Internal combustion engines transmissions, and cargo transportation ELECTRICAL: Large and medium sizes motors, traction motors and generators INDUSTRIAL: Gear boxes and machine tool spindles, steel mills
Specification
item
| value
|
Type
| Roller
|
Structure
| Cylindrical
|
Applicable Industries
| Manufacturing Plant, Machinery Repair Shops, Energy & Mining
|
Brand Name
| nsk ntn koyo nachi or other
|
Model Number
| nsk ntn koyo nachi cylindrical roller bearing nf nn
|
Precision Rating
| P6, P0, P5, P4, P2
|
Seals Type
| open
|
Number of Row
| Single row
|
Place of Origin
| China
|
Product name
| Cylindrical Roller Beairngs
|
Material
| GCR15/ CHROME STEEL
|
Cage
| Steel pper Cage.nylon Cage
|
Application
| Machinery
|
Feature
| Long Life
|
Service
| OEM Customized Services
|
WARRANTY
| 12 Months
|
Package
| Package+carton+pallet
|
Sample
| Avaliable
|
Delivery
| 1~15days
|
Why Choose Us
OUR DIFFERENCE:We offer not only good bearings, but also our knowledge.Why choose us? Bearing is a professional ball bearing manufacturer in China and export kinds of high precision bearing for target industries all over the world since 2000. Our strength products as below: Ball bearings Taper roller bearings Pillow block bearings Other roller bearings 70% products are exported to North America, West Europe and Asia. At same time, we also distribute some NSK, NTN, KOYO, NACHI, C&U, HRB, LYC, ZWZ for Authority Agent. 3 professional joint venture bearing factories with 204300 square meters 10 years rich export experience and know how to do 183 rich experienced employee work for you 10 million USD export turnover for 42 countries in 2020 Custom made and oem small order are ok with prompt delivery Complete quality assurance with ISO 9001, ISO 14000 and TS 16949
>>
