Film Bowling ABA Machine Blowing Film Film Bowling ABA Machine Sja Model Normal HDPE LDPE ABA Film Blowing Machine

Product Description

Product Description

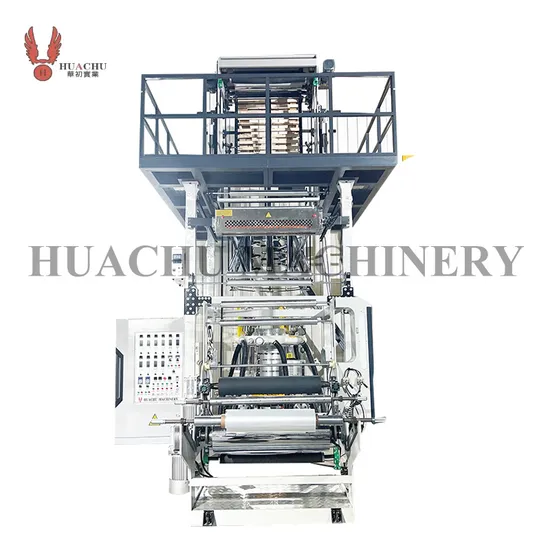

ABA three layer co-extrusion film blowing machine is professional used in blowing HDPE and LDPE film. The machine can increase production output , improve quality of film and save your cost, which is suitable for blowing high-low pressure polyethylene industrial film and agricultural film. APPLICATIONS
-------------------------------------------------------------------------------------------------------------------------------------- Shopping bag, Garbage bag, Packaging bag,industrial film , agricultural film PRODUCT INFORMATION --------------------------------------------------------------------------------------------------------------------------------------
ABA (HD/LDPE) Film Blowing Machine Performance and Characteristics:
The machinge body is channel steel frame traction frequency friction,with single rolling friction,lift up and down which is suitable for blowing high-low pressure polyethylene industral fiml and agricultural film.
ABA extrusion film blowing machine ,we can design different size according to customer's request.Machine detailes:
Technology Parameter

HDPE EXTRUDER	MODEL	HDABA45X2X1000
FEATURE	SUITABLE MATERIAL	HDPE, LDPE,LLDPE
	LAYER NUMBER	3-ABA
	FILM THICKNESS	HD: 0.01-0.06MM, LD: 0.03-0.08MM
	MAX OUTPUT	120KG/H
	MAX FILM WIDTH	1000MM
EXTRUSION UNIT	SCREW DIAMETER	Φ55X2
	SCREW L/D RATIO	30/1
	SCREW MATERIAL	BIMETALLIC
	BARREL THERMO CONTROL	3X2
	BARREL COOLING FAN	370WX3X2
	SCREEN CHANGER	STANDARD
	DRIVING MOTOR	15KWX2 SIEMENS
	GEARBOX	#146
EXTRUSION DIE UNIT	DIE	HDABA Φ60/80
	DIE TYPE	FIXED
	DIE THEROMO CONTROL	2
	AIR RING	DUAL LIP
	FLANGE THERMO CONTROL	2
	AIR BLOWER	5.5KW
TAKE UP UNIT	TAKE UP TYPE	FIXED
	BUBBLE CAGE MATERIAL	WOODEN
	TOP NIP MATERIAL	WOODEN
	TAKE UP ROLL MATERIAL	HIGH TEMP RUBBER
	TAKE-UP ROLLER LENGTH	1000MM
	GUSSET	INCLUDED
	TAKE-UP MOTOR	1.5KW GEAR MOTOR
	TAKE-UP SPEED	10-80M/MIN
	PINCH PATTERN	PNEUMATIC
WINDING UNIT	WINDING TYPE	SINGLE MANUAL WINDER
	WINDING ROLLER LENGTH	1000MM
	WINDING SHAFT	STOPPER SHAFTX2
	BANANA ROLLER	WITHIN
	MAX DIA.OF WINDED ROLL	800MM
	WINDING MOTOR	TORQUE MOTOR
	SPEED CONTROL	SPEED CONTROLLER
CONTROL PANEL	HEATING SYSTEM	ACR+PID (ENERGY SAVING)
	TEMP. CONTROLLER	FOTEK (TAIWAN)
	ELECTRIC PARTS	ABB
	INVERTER BRAND	DELTA
	WORKING VOLTAGE	380V,50HZ

It is used for blowing the plastic laminated film of low density polyethylene(LDPE), high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc. ABA Double-Layer Common-Extruding Film Blowing Machine
Use:
It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.

Description
1. Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.

Model	HDABA45×45×1000	HDABA45×50×1000
Screw diameter	Φ45×45	φ45×50
Width of film (mm)	300-900	300-900
Thickness of film (mm)	HDPE 0.008-0.06 LDPE 0.02-0.15	HDPE 0.008-0.06 LDPE 0.02-0.15
Die size	HDPE ABA φ60/80	HDPE ABA φ80/100
Max output (kg/h)	140kg	160kg
Screw L/D length	32 :1	32 :1
Screw and cylinder material	Bimetallic	Bimetallic
Main motor	15kw×15kw	15kw×22kw
Gearbox model	146×146 SG	146×146 SG
Blower (kw)	5.5 kw	5.5 kw
Weight (T)	5.2 T	5.5 T

Company Profile

We are Taiwan Type High Speed Blown Film Machine suppliers/manufacturers from china factory . We can produce the Taiwan Type High Speed Blown Film Machine according to the client's requirement. We are always try our best to become the good Taiwan Type High Speed Blown Film Machine, film blowing machine manufacturers/suppliers and welcome the customer from all over the world to contact with us. Detailed Photos

Packaging & Shipping


FAQ
A. When your company was found?
B. our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.

---
