Cjx2 AC Contactor with Good Material IEC60947-4-1

US$1.96 100 Pieces (MOQ)

Basic Info.

Model NO.
KNC1
Phase
3
Main Circuit Rating Voltage
690V
Main Circuit Rating Current
150A
Type
Ac Contactors
Rated Operation Current
10-400A
Rated Operation Voltage(V)
220V, 230V, 380V, 400V
Ambient Temperature
-5~+40
Action Principle
Electronic Type
Frequency
50/60Hz
IEC
IEC 60947-4
Load
High Power Relay
ISO
ISO9001 ISO14001
Coil Voltage
24, 48, 110, 220, 230, 240, 380, 415, 440V
Transport Package
Carton
Specification
CE
Trademark
korlen
Origin
Wenzhou
HS Code
8537209000
Production Capacity
1000000PCS/Month

Product Description

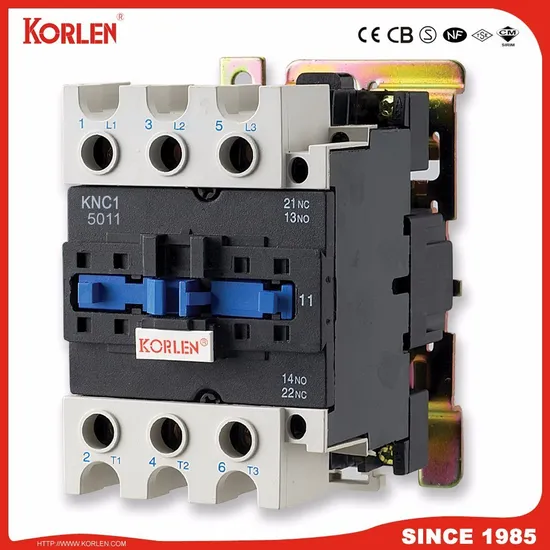

The series KNC1 AC contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reve-rsible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.
This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
Type Rated
insulation
voltage(V)		 Conventional
thermal
current(A)		 Rated
operation
current(A)		 Control power(kw) No .of
contacts		 Remark
220V 380V 415V 440V 660V
KNC1-0910
0901
 660 20 9 2.2 4 4 4 5.5 3P+NO
3P+NC
 Installation
method
1.with two
screws
2.35mm
din rail
KNC1-1200
1201
 20 12 3 5.5 5.5 5.5 7.5 3P+NO
3P+NC
KNC1-1810
1801
 32 18 4 7.5 9 9 9 3P+NO
3P+NC
KNC1-2510
2501
 40 25 5.5 11 11 11 15 3P+NO
3P+NC
KNC1-3210
3201
 50 32 7.5 15 15 15 18.5 3P+NO
3P+NC
KNC1-4011 60 40 11 18.5 22 22 30 3P+NO+NC Installation
method
1.with three
screws
2.75mm or
35mm
din rail
KNC1-5011 80 50 15 22 25 30 33
KNC1-6511 80 65 18.5 30 37 37 37
KNC1-8011 125 80 22 37 45 45 45
KNC1-9511 125 95 25 45 45 45 45
Type KNC1-09 KNC1-12 KNC1-18 KNC1-25 KNC1-32 KNC1-40 KNC1-50 KNC1-65 KNC1-80 KNC1-95
Pick-up voltage
50/60Hz(V)		 (0.85~
1.1)Us		 (0.85~
1.1) Us		 (0.85~
1.1)Us		 (0.85~
1.1)Us		 (0.85~
1.1)Us		 (0.85~
1.1)Us		 (0.85~
1.1)Us		 (0.85
~1.1)Us		 (0.85~
1.1)Us		 (0.85~
1.1)Us
Release voltage
50/60Hz(v)		 (0.2~
0.75)Us		 (0.2~
0.75)Us		 (0.2~
0.75)Us		 (0.2~
0.75)Us		 (0.2~
0.75)Us		 (0.2~
0.75)Us		 (0.2~
0.75)Us		 (0.2~
0.75)Us		 (0.2~
0.75)Us		 (0.2~
0.75)Us
Coil power 50Hz
60Hz

 Pick-up(VA) 70 70 110 110 110 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Pick-up(VA) 80 80 115 115 115 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Power
consumption
(W)		 1.8~2.7 1.8~2.7 3~4 3~4 3~4 6~10 6~10 6~10 6~10 6~10
