Product Details
Product Description
Product Description
Focus on DCS, PLC, robot control system and large servo system.
Main products: various modules / cards, controllers, touch screens, servo drivers.
Advantages: supply of imported original products, professional production parts,
Fast delivery, accurate delivery time,
The main brands include ABB Bailey, Ge / fuanc, Foxboro, Invensys Triconex, Bently, A-B Rockwell, Emerson, ovation, Motorola, xyvom, Honeywell, Rexroth, KUKA, Ni, Deif, Yokogawa, Woodward, Ryan, Schneider, Yaskawa, Moog, prosoft and other brands

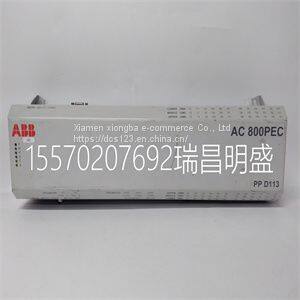

| PPD113 PPD103B101 3BHE020455R0101 3BHE023784R2630 |
3. Click OK to close the dialog. Expansion Module for Profibus DP An expansion module can be used for connection via Profibus DP. Observe precautions for handling electrostatic sensitive devices. Expansion Module for Profibus DP Section 3 Installation 22 3BSE043446R501 Space Requirements Installation 1. Unpack and check the delivery. If damage is found, notify the supplier. 2. Disconnect the operator panel from the power supply. Place the operator panel on a stable surface during installation. Dropping it or letting it fall may cause damage 30 mm 70 mm M3x6 - 4 p 4 PCS Section 3 Installation Expansion Module for Profibus DP 3BSE043446R501 23 3. Remove the plastic cover from the expansion port. 4. Secure the expansion module in position, using the provided screws. 5. Connect the operator panel to the power supply. Technical Data Size, W x H x D 87 x 70 x 30 mm Weight 0,1 kg CB810 - USB to Ethernet Adapter Section 3 Installation 24 3BSE043446R501 CB810 - USB to Ethernet Adapter General information CB810 is a USB 2.0 to Fast Ethernet converter. It converts a standard USB Host port on a PC to a standard network adapter (network card). To enable project transfer etc. between Panel 800 with built-in Ethernet RJ45 port and a PC using the USB port on the PC; connect the CB810 adapter as follows. The USB Type A connector on CB810 is connected to a USB Host port on a PC. Crossover Ethernet patch cable (twisted pair cable) with RJ45 connectors is connected between the Ethernet RJ45 port on CB810 and the Ethernet RJ45 port on the Panel 800. Section 3 Installation Connections to the Controller 3BSE043446R501 25 Follow the instructions in the manual for the operator panel to make settings for the Ethernet / TCP/IP project transfer in the configuration tool. Technical Specifications • Single chip USB to 10/100 Mbps Fast Ethernet. • Compliant with USB specifications 1.0, 1.1, and 2.0. • Full/High Speed USB Device with bus power capabilities. • IEEE 802.3u 100BASE-T, TX, and T4 compatible. • Embedded 7K*16 bit SRAM, 256*16 bit SRAM and 8 FIFOs. • Supports both full-duplex or half-duplex operation Fast Ethernet. • Supports suspended mode and remote wake up. • Optional PHY power down mode for power savings. • Supports automatic loading of Ethernet ID, USB Descriptors and Adapter Configuration from EEPROM on power-on initialization. • Ethernet PHY loop-back diagnostic capability. Connections to the Controller For information about the cables to be used when connecting the operator panel to the controller, please refer to the help file for the driver in question. Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. CB810 is not approved for fixed installation or for use when the Panel 800 is installed and/or running. It should only be used for project/file transfer between a PC and the Panel 800. CB810 cannot be connected directly to the Panel 800. When using a compact flash card, do not remove the card when the busy indicator is illuminated. Other Connections and Peripherals Section 3 Installation 26 3BSE043446R501 3BSE043446R501 27 Section 4 Technical Data Parameter PP835 PP835A Front panel, W x H x D 219 x 154 x 6 mm Mounting depth 56 mm (156 mm including clearance) Front panel seal IP 66 Rear panel seal IP 20 Keyboard material/Front panel Touch screen: Polyester on glass, 1 million finger touch operations. Overlay: Autotex F157/F207 *. Reverse side material Powder-coated aluminum Weight 1.2 kg Serial port RS422/RS485 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC. Serial port RS232C 9-pin D-sub contact, male with standard locking screws 4-40 UNC. Ethernet Shielded RJ 45 USB Host type A (USB 1.1), max output current 500mA Device type B (USB 1.1) CF-slot Compact flash, type I and II Flash memory for application 12 MB (incl. fonts) Real time clock ±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C Temperature coefficient: -0.034±0.006 ppm/°C2 Section 4 Technical Data 28 3BSE043446R501 Real time clock battery CR2450 (UL and cUL: Sanyo or Panasonic) Minimum lifetime: 3 years Rechargeable battery. Power consumption at rated voltage Normal: 0.4 A Maximum: 0.9 A Display TFT-LCD. 640 x 480 pixels, 64K color. CCFL backlight lifetime at the ambient temperature of +25 °C: >50,000 h TFT-LCD. 640 x 480 pixels, 64K colors. LED backlight lifetime at the ambient temperature of +25 °C: >25,000 h. Active area of display, W x H 131.5 x 98.6 mm Fuse Internal DC fuse, 3.15 AT, 5 x 20 mm Power supply +24V DC (20 - 30V DC). 3-pin jack connection block. CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4. UL and cUL: The power supply must conform with the requirements for class II power supplies. Ambient temperature Vertical installation: 0 ° to +50 °C Horizontal installation: 0 ° to +40 °C Storage temperature -20 °C to +70 °C Relative humidity 5 - 85 % non-condensed CE approvals Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity. UL, cUL approvals (when procuct or packing is marked) UL 1604 Class I, Div 2 / UL 508 / UL 50 4x indoor use only UL 508 / UL 50 4x indoor use only DNV Yes Parameter PP835 PP835A Section 4 Technical Data 3BSE043446R501 29 NEMA 4x indoor use only * See Section 5, Chemical Resistance for more
>>
