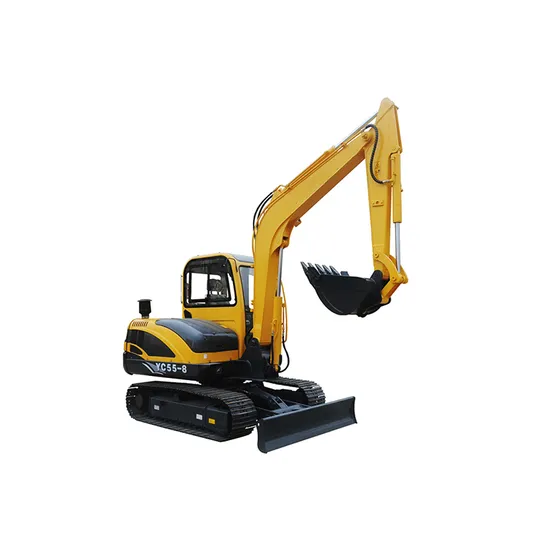

China Top Brand 5.5 Ton Yc55-8 Crawler Excavator

Product Description

China Top Brand 5.5 Ton Yc55-8 Crawler Excavator

Product Description

* Equipped with China engine that meets Stage III emissions, it has strong power, and the industry's same tonnage industry provides large power output and flow, on the basis of ensuring high efficiency, it also has higher reliability and durability
* The new main pump displacement is supplied to the system on demand, the standby is automatically reduced, and the work is provided on demand, reducing energy consumption and energy saving
* Air filter, oil filter, diesel filter, antifreeze, lubrication point and other main maintenance points are centralized
layout,realizing convenient one-stop maintenance and inspection.
Product Parameters

Parameter	YC35-8	YC35SR	YC55-8	YC55SR
Dimension Paramneter
Operating weight(kg)	3740	3800	5710
Standard Bucket Capacity(m³)	0.12	0.12	0.2
Power of engine(kw/rpm)	30.5/2200	29.2/2200	39-45/2200	30.5/2200
Machine length(mm)	5250	4650	6065	5715
Machine height(mm)	2470	2550		2715
Overall width(mm)	1518	1800	1910	2000
Crawler width(mm)	300(Steel/Rubber Crawler)		400
Crawler length(mm)	2100		2455	2600
Wheel-base(mm)	1620		1910	2060
Min.ground clearance(mm)	320	350	340	345
Overall height(mm)	1690	1510	2275
Height of engine hood	1385	1425	1830	1600
Width of platform(mm)	1494	1740	1670	1936
Width of bucket(mm)	608	638	195	547
Walking speed(low/high)	2.4/4.3		2.8/4.7
Platform slewing speed(rpm)	11.5	11-13	10.5	10.4
Operating Parameter
Max.digging height(mm)	5190	5100	5700	5940
Max.dumping height(mm)	3670	3630	3855	4050
Max.digging depth(mm)	3546	3120	3789	3790
Max.digging radius(mm)	5630	5460	6380	6360
Max.horizontal digging lenth(mm)	5486	5340	6196	6227
Max.digging height radius(mm)	3265	2948	4127	6370
Min.slewing radius(mm)	1992	2210	2670	2465
Max.depth of bulldozer(mm)	460	450	397	460
Max.height of bulldozer(mm)	210	389	251	350
Max.digging force(kN)	22.2	25.7	37.3	25.7
