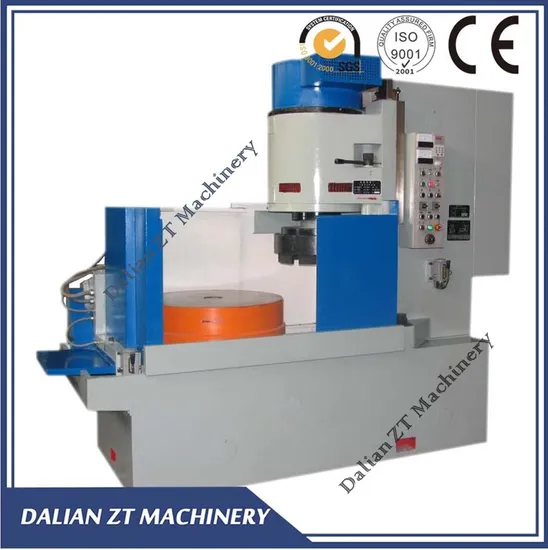

M7450 Vertical Spindle Surface Grinding Machine with Rotary Table

Product Description

Features:
M74 Vertical surface grinding machine with rotary table
The grinding range is from dia. 500mm to 2500mm. This series of grinding machine is mainly used for the industry needing grinding process, such as circular saw blade,
automobile parts and components, tool and guage, bearing, mold and mold holder, magnetic material, hydraulic parts etc.

Item	M7450E
Table diameter	Φ500mm
Table speed	5-20rpm
Max. Swing dia. of workpiece	Φ580mm
Table movement
Total machine power	27kW
Max. Loading of table	200kg
Grinding wheel size(ODxIDxH)	350x280x125mm
Spindle speed of grinding head	980rpm
Grinding head motor	22kW
Max. Grinding size(DxH)	Φ500x300mm
Roughness of machining surface	Ra0.8um

FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
