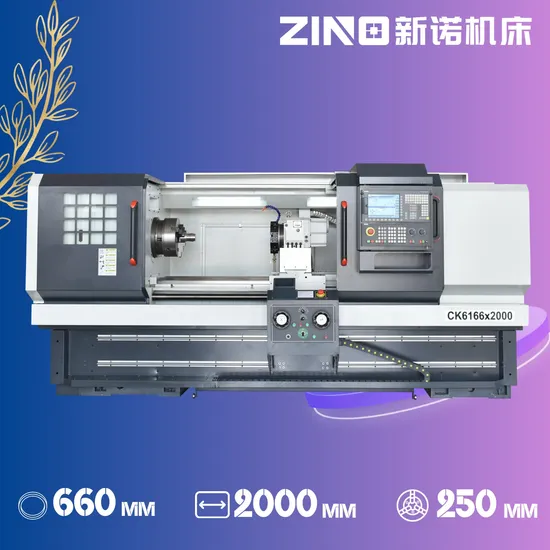

Ck6166 Flat Bed CNC Lathe Machine

US$12,000.00-14,000.00 1 SET (MOQ)

Basic Info.

Model NO.
CK6166-1000
Controller
Siemens808d Ver.15
Max. Swing Over Bed
Φ660mm
Max. Process Length
2000mm
Manual Chuck
250mm
Spindle Motor
7.5kw Motor
Spindle Bore
82mm
Max.Dia. of Through-Hole
60mm
Spindle Seed
2200rpm
Distance Between Centers
2000mm
Turret
8 Station (25X25mm)
Max. Swing Over Cross Slide
Φ420mm
Tailstock
Manual Tailstock
Spindle Nose
A2-8
Transport Package
Fumigation Package
Specification
3850x1800x2220mm
Trademark
ZINO
Origin
Jiangsu Province
HS Code
8458110090
Production Capacity
200 Pieces / Year

Product Description


Stephen Zhang / Deputy General Manager

Factory: JIANGSU ZINO MACHINERY MANUFACTURING CO., LTD
Address: No.36-1, Meihua Road, Xuyi Industry Park, Huai'an City, Jiangsu Province, China
