White Color Customized Nylon Peel Ply for Vacuum Infusion Process

US$0.30-0.80 1 Roll (MOQ)

Basic Info.

Model NO.
85gsm
Width
Customized
Weight
100g
Type
Special
Technics
Woven
Pattern
Plain
Style
Plain
Knitted Type
Warp
Fiber Length
Long Fiber
Length
200m
Resin System
Epoxy, Polyester, Vinyl Ester
Distance of Red Thread
3cm
Density
18*16 Ends/Cm
Thickness
130um
Temperature Resistance
263 Degree
Tensile Strength Warp
More Than 1400n
Tensile Strength Weft
More Than 1200n
Transport Package
Pallet
Specification
85gsm
Trademark
SFT
Origin
China
HS Code
54074100
Production Capacity
1000000m

Packaging & Delivery

Package Size
30.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

White Color Peel Ply for Vacuum Infusion Process with good heat resistance which can meet the resin exothermic peak and easy to remove from the product. It's widely used in FRP industry. We also provide a range of frp related materials.
Item Test Result Standard
Material PA66 Nylon ISO1833:2006
Color White color With Red Thread
Density(ends/cm) (18*16)±5% FZ/T 01093-2008
Gram Weight(g/m2) 83-86 GB/T 4669-2008
Tensile Strength(N) Warp >=1400 GB/T 3923.1-2013
Weft >=1200 GB/T 3923.1-2013
Thickness(um) 130±2 GB 3820-83
Temperature(ºC) <=263 /
Distance of Red Thread(cm) 3.0 GB/T4669-2009
Impurity <=0.5% No silicone

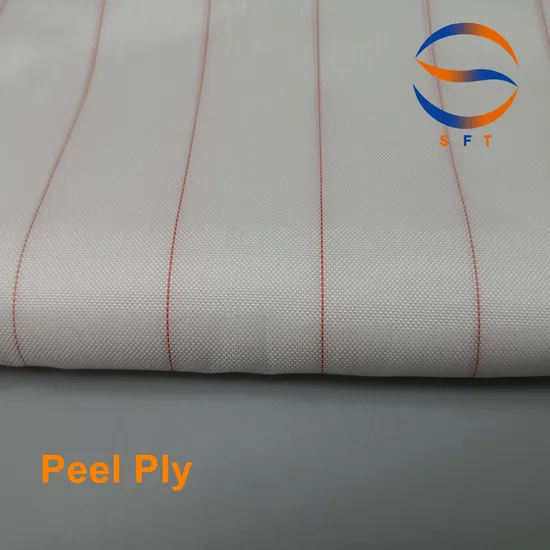

Photo of Products:
SFT Industries Co., Ltd is specialized in high performance fiber reinforced plastics materials, integrating development, production and trade together. Our main products include carbon fiber, PVC foam core, FRP tools and a range of FRP related products to many countries. Serving for boat building, wind energy, traffic vehicle, sports equipment, anti-corrosion, electrical insulation, high temperature resistant etc.
We are the strategic partner of our local boat factory. So we could provide many kinds of FRP related products with very competitive price.
Our insistance and devotion will bring you satisfactory service. It's our honor to become your reliable partners. Hope to develop with you in the future.
