Hot Sale Made in China Aluminum Strip Slitting and CNC Cut to Length Line

Product Description

Hot Sale Made in China Aluminum Strip Slitting and CNC Cut to Length Line
Cut to length line,coil cutting line,steel coil cut to length line 1, Easy operation 2, High speed 3, ISO9000:2001 certification 4, High precision

Materials of Processible Coiled Plate	Coiled Plate Cold & Heat Rolled Steel, Acid Pickling Steel Sheet
Thickness of Coiled Plate	8.0-16 mm
Width of Coiled Plate	1000-2100 mm
Coil Inner Diameter	ø 500 mm-ø 760 mm
Coil Outer Diameter	≤ ø 2200 mm
Weight of Coiled Plate	≤ 30T
Specification	Parameters

Technical parameters of cut to length line,coil cutting line,steel coil cut to length line:
1. Leveling Speed 0 - 15 m/min
2. Accuracy of Length Cutting ≤±1.0mm/2M
3. Accuracy of Diagonal ≤±2mm/2M
4. Cutting Speed for Materials ≥ 5 pcs/min (According to 3000 mm Length)
5. Stack-Up Table Elevator Loading Weight 5000 kgs
6. Stack-Up Length Range 3000 mm, after running-out.
7. Minimum Cut-Off Length 350 mm
8. Maximum Stack-Up Height Range 400 mm
9. Motor Main Power 160kw, approximately
10. Machine Occupy Space 28000 x 6000 mm, approximately (L x W)

Equippment of cut to length line,coil cutting line,steel coil cut to length line:
1. Charge Wagon 1 set
2. Hydraulic Single-Head Decoiler 1 set
3. Hydraulic Guiding Panel Device 1 set
4. Hydraulic Feeding Device 1 set
5. Roller Table 1 set
6. Limit Table 1 set
7. 2 Rollers for Cut-to-Length & 5 Rollers for Leveling Machine 1 set
8. Measuring Table 1 set
9. Tailgate Feeder 1 set
10. Hydraulic Shearer 1 set
11. Run Out Table 1 set
12. Thrower 1 set
13. Stacker 1 set
14. Pneumatic Arrangement Machine 1 set
15. Hydraulic Stand 2 sets
16. Electronic Control System 1 set
Delivery date of
145 DAYScut to length line,coil cutting line,steel coil cut to length line

Qiangda60 Series Parameter							Qiangda100 Series Parameter
Model	Sheet Thickness(mm)	Coil Weight(T)	Coil Width(mm)	Line Speed	Shear accuracy	Leveling accuracy	Model	Sheet Thickness(mm)	Coil Weight(T)	Coil Width(mm)	Line Speed	Shear accuracy	Leveling accuracy
60-2x650	0.2-2.0	3,5	150-650	10-60	±0.2	1.2	100-2x650	0.2-2.0	3,5	150-650	10-100	±0.15	1.0
60-2x850	0.2-2.0	5,10	150-850	10-60	±0.2	1.2	100-2x850	0.2-2.0	5,10	150-850	10-100	±0.15	1.0
60-2x1050	0.2-2.0	10,15	300-1050	10-60	±0.2	1.2	100-2x1050	0.2-2.0	10,15	300-1050	10-100	±0.15	1.0
60-2x1300	0.3-2.0	10,15	300-1300	10-60	±0.2	1.2	100-2x1300	0.3-2.0	10,15	300-1300	10-100	±0.15	1.0
60-2x1600	0.3-2.0	15,20	300-1600	10-60	±0.2	1.2	100-2x1600	0.3-2.0	15,20	300-1600	10-100	±0.15	1.0
60-3x650	0.2-3.0	3,5	150-650	10-60	±0.2	1.2	100-3x650	0.2-3.0	3,5	150-650	10-100	±0.15	1.0
60-3x850	0.2-3.0	5,10	150-850	10-60	±0.2	1.2	100-3x850	0.2-3.0	5,10	150-850	10-100	±0.15	1.0
60-3x1050	0.2-3.0	10,15	300-1050	10-60	±0.2	1.2	100-3x1050	0.2-3.0	10,15	300-1050	10-100	±0.15	1.0
60-3x1300	0.3-3.0	10,15	300-1300	10-60	±0.2	1.2	100-3x1300	0.3-3.0	10,15	300-1300	10-100	±0.15	1.0
60-3x1600	0.3-3.0	15,20	300-1600	10-60	±0.2	1.2	100-3x1600	0.3-3.0	15,20	300-1600	10-100	±0.15	1.0

PICTURES

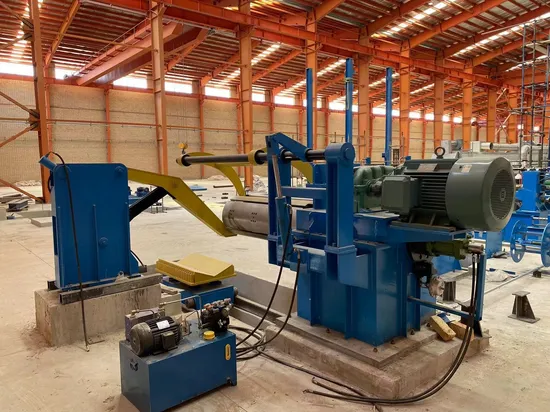

Install for customer on site

About us
Shipping & Delivery
FAQ
1.What is your advantages?
More than 20 years experience in manufacture. We have professional engineers to provide technical support and rich experience in solving emergency. High degree of automation, high shearing accuracy and fast running speed.
2. Do you have after sales support?
We provide thoughtful after-sales service, and also arrange complete management cases for customers.
Training: Customers can get great training related to our products and technology from our factory Qiangda&Yuao.
On-site Service: Qiangda&Yuao has a complete technical service system.
We make sure that "the service team will go where our customer needs." May you have questions, please contact us or leave a message online.
Technical Support: We offer the technical support if needed. Our engineers will help you with installation and operation.
3. What information you need to prepare the quotation:
1. Coil thickness rang(min-max)
2. Plate width (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. Speed
6. How many tons you need per day or per month

---
