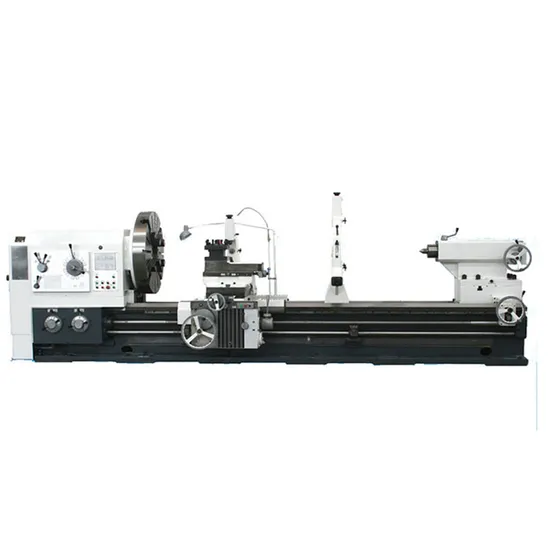

Big Bore Heavy Duty Precision Horizontal Metal Lathe Machine

US$36,800.00-57,900.00 1 set (MOQ)

Basic Info.

Model NO.

CW61125B

Type

Horizontal Lathe

Processing Accessory

Metal Parts

Guide Rail

Inclined Guide Rail

Tool Holder

4-Position Tool Post

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Name

Heavy Duty Precision Lathe Machine

Swing Over Bed Dia.

1000mm

Center Height

500mm

Max .Length of Work Piece

3000mm

Width of Bed

755mm

Spindle Bore Dia

130mm

Spindle Speed

3.5-291, 2-200r/Min

Spindle Motor

22kw

Max Cross Slide Travel

520mm

Max Top Slide Travel

300mm

Max. Travel of Tailstock

160mm

Diameter of Tailstock

300mm

Max Workpiece Weight

600kg

Transport Package

Wood Case

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

China

HS Code

84581900

Production Capacity

100sets/Month

Product Description

big Bore heavy duty precision Horizontal Metal Lathe machine FEATURE
Lathe feature:
1. The side wall of bed is constructed of double-rib plates and internal rib plate employs combined structure of box-type and bevel ribs, Rigidity of machines increases a factor of by 1/3 times compared with that of n-type ribs of single wall.
2. Operations are concentrated. On the apron. there is a device which can move rapidly and is operated by a single handle. Braking and rotating direction change of spindle is visualizedly controlled by hydraulic system.
3. Both rigidity of construction and rigidity of transmission are high, so precision is stable and heavy cut can be carried out.
4. Owing to the saddle guideway which is inlaid with TSF wear-resisting material plate, the carriage moves lightly and nimbly. The service life of the guideway is extended. Lubricating system circulates from the external independent storage tank, thus cutting precision is increased.
5. The spindle bore is 104mm. The tailstock is equipped with a graduated disc and graduated line. The machine is characterized with elegant appearance and easy to be cleaned and maintained. SPECIFICATIONS
Lathe MAIN SPECIFICATION

Model		CW61100B	CW61125B	CW61160B
Max. Swing Diameter Over Bed		1000mm	1250mm	1600mm
Max. Length of Workpiece		1500-12000mm
Max. Turning Diameter		1300-11800mm
Max. Swing Diameter over Carriage		610mm	860mm	1250mm
Spindle Bore		130mm
The Width of Rail		755mm
The Hole Taper before Spindle (Metric System)		Front Φ140 Metric1:20
Number of Speeds (Reverse)		3.15-315 r/min
The Rotate Speed of Spindle	forward	3.5-291 r/min
	Reverse	2-200 r/min
Range of Feeds	Longitudinal	0.1~12mm(56kinds)
	cross	0.05-6mm(56kinds)
	Upper tool post	0.02-3mm,
The Range of hreads	The Kinds of Metric Threads	1-120mm, 44kinds
	The Kinds of Inch Thread	28-1/4 t.p.i, 31kinds
	The Kinds of Module Threads	0.5-60mm, 45kinds
	The Kinds of Diametral Pitch Threads	1/2-56DP, 38,inds
	The Range of Diametral Pitch Threads	45mm × 45mm
Tool Post	Max cross slide travel	520mm	580mm	630mm
	Max top slide travel	300mm
	Max. Travel of tailstock	160mm
Tailstock	Diameter of Tailstock	300mm
	Taper of tailstock	Morse 6
Main motor		22kw
Max workpiece weight		600kg
