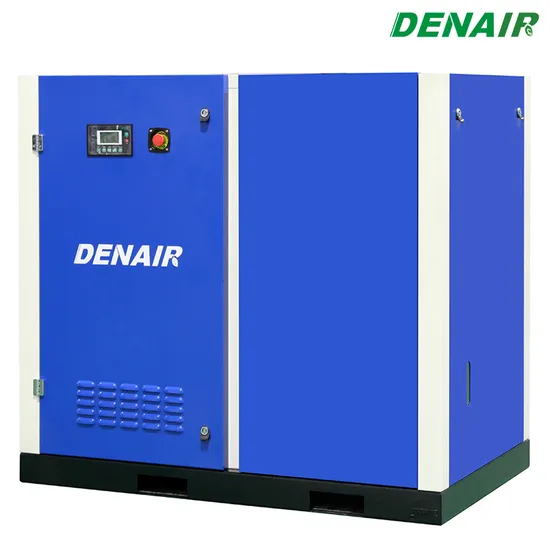

Permanent Magnet Synchronous Motor (PMSM) Variable Frequency Converter Drive Pm VSD Inverter Direct Driven Double Screw Air Compressor with Affordable Price

Product Description

Industrial AC Power Permanent Magnet Synchronous Motor (PMSM) Variable Frequency Converter Drive Pm VSD Inverter Direct Coupled Screw Air Compressor Advantage
1. DENAIR PMSM(Permanent Magnet Synchronous Motor) VSD air compressor reduces the energy consumption by a staggering 50% on average.

2.Best-in-class screw element with longer male rotor, high volumetric efficiency

3.Permanent magnetic electric motor, no bearing, no lubricant and no maintenance, 100% transmission

4.Intelligent touch screen control panel, checking air compressor status more conveniently, monitor total power consumption, setting start and stop time of air compressor

5.Unique design for inverter, perfect protection from short phase, phase short circuit, ground short circuit, over current, overvoltage, under voltage, overload, overheating, motor thermal protections etc.
Technical Parameters Of Variable Frequency Air Compressor with PMSM Motor

Model	Maximum working pressure		Capacity(FAD)		Installed motor power		IP Grade	Noise level	Dimensions (mm)	Weight	Air outlet pipe diameter	Starting Method	EEI
	bar(g)	psig	m3/min	cfm	kw	hp			L*W*H	kg
DAV-5	7.0	102	0.45-1.00	16-35	5.5	7.5	IP65	65	900*600*860	165	R1/2	Direct Driven Air Cooling	EEI1
	8.0	116	0.44-0.95	16-34
	10.0	145	0.38-0.76	13-27
DAV-7	7.0	102	0.43-1.40	15-49	7.5	10	IP65	65	900*600*860	180	R1/2
	8.0	116	0.41-1.39	14-49
	10.0	145	0.29-1.00	10-35
DAV-11	7.0	102	0.60-2.16	21-76	11	15	IP65	65	1050*650*900	205	R3/4
	8.0	116	0.89-1.94	31-69
	10.0	145	0.81-1.67	29-59
	12.5	181	0.43-1.13	15-40
DAV-15	7.0	102	0.80-2.73	28-96	15	20	IP65	65	1100*650*920	315	R3/4
	8.0	116	0.74-2.48	26-88
	10.0	145	1.05-2.24	37-79
	12.5	181	0.55-1.80	19-64
DAV-18	7.0	102	1.01-3.38	36-119	18.5	25	IP65	65	1300*800*1050	375	R1
	8.0	116	0.98-3.27	35-115
	10.0	145	0.88-2.95	31-104
	12.5	181	0.74-2.57	26-91
DAV-22	7.0	102	1.82-3.95	64-139	22	30	IP65	65	1300*800*1050	420	R1
	8.0	116	1.81-3.84	64-136
	10.0	145	1.67-3.39	59-120
	12.5	181	0.88-3.00	31-106
DAV-30	7.0	102	2.63-5.51	93-195	30	40	IP65	67	1400*900*1200	500	R1-1/2
	8.0	126	1.56-5.40	55-191
	10.0	145	1.36-5.30	48-187
	12.5	181	2.09-3.51	74-124
DAV-37	7.0	102	2.07-6.74	73-238	37	50	IP65	67	1400*900*1200	550	R1-1/2
	8.0	116	3.43-6.45	121-228
	10.0	145	2.95-5.88	104-208
	12.5	181	1.42-4.78	50-169
DAV-45	7.0	102	2.51-8.16	89-288	45	60	IP65	67	1500*960*1200	580	R1-1/2
	8.0	116	2.38-8.00	84-282
	10.0	145	3.63-6.38	128-225
	12.5	181	1.62-5.33	57-188
DAV-55	7.0	102	4.44-10.81	157-382	55	75	IP55	73	1800*1200*1400	1045	Rp2
	8.0	116	5.10-10.30	180-364
	10.0	145	4.83-9.44	171-333
	12.5	181	3.94-7.67	139-271
DAV-75	7.0	102	5.32-13.25	188-468	75	100	IP55	73	1800*1200*1400	1325	Rp2
	8.0	116	6.44-13.14	227-464
	10.0	145	5.71-11.59	202-409
	12.5	181	3.69-9.44	130-333
*) FAD in accordance with ISO 1217:2009, Annex C: Ansolute intake pressure 1 bar (a), cooling and air intake temperature 20ºC **) Nosie level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance:±3 dB(A) Specifications are subject to change without prior notice

We carefully selected for you the classic case
14 sets of VSD air compressor for 40HQ are ready for packing and delivering to DENAIR distributor in Buenos Aires, Argentina. The compressors are high-end customized for Argentina market with Germany MANN filters, France SCHNEIDER inverter, Belgium CMC controller, etc.
DENAIR Factory
DENAIR Customers
DENAIR Exhibition
DENAIR Certificae
DENAIR Packing
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: No. 366, YangzhuangBang Street, Pingxing Rd., Xindai Town, Pinghu, Zhejiang Province, China
Q3: Warranty terms of your machine?
A3: Two years warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the Air Compressors?
A4: Yes, of course.
Q5: How long will you take to arrange production?
A5: 380V 50HZ we can delivery the goods within 10 days. Other electricity or other color we will delivery within 22 days
Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome.

---
