Product Description
Product Description
Product Description
Product Application

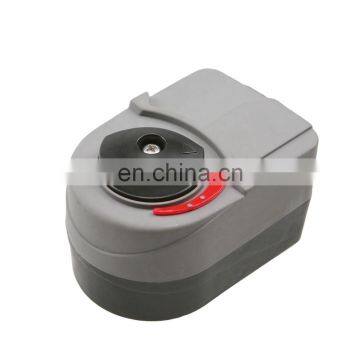

Actuators Rotmix are compact and simple heating controllers that are installed directly onto the mixing valve and diverting valve.with function on/off.Compact design,fast installation, ease of use and reliability.
Technical Data
|
Torque
| 6Nm(Max.),
|
Cable Length
| 90CM
|
Power supply
| 220-230V Ac, 50-60HZ, 24VAc
|
Absorption
| 4 VA
|
Operating temperature:
| --5° ; +50°C
|
Protection grade
| IP44
|
Rotation time
| 60 - 120 sec.
|
Rotation angle
| 90°
|
Type of command
| 3 point
|
Valve connection
| 1/2"-3/4"-1"-1 1/4"-1 1/2"-2"
|
Main Features
Actuator is mounted directly on the shaft of the valve body and is fixed with one screw. Fasteners supplied with the actuator. The mounting position of the actuator can be selected with step 90 degrees due to its small size and compact shape. Rotmix is suitable for most applications, including a pump block in a insulation. The angle of rotation is limited to 90 degrees. The actuator is connected to the valve by the sleeve (included in the package).
Including mounting set forEURO Standard mixing valves
ACASO (TERMOMIX), BARBERI, FER TERM, PAW,EURONORM, ESBE, IMP, DANFOSS, BESSER,SELTRON, LOVATO, TUXHORN, STRAWA, CIMBERIO
Installation Diagram
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
*If you have any questions, please contact us
FAQ
Q:Are you manufactory?
A: Yes,we are professional manufacturer for brass fittings and valves .
Q:What is MOQ for this product in your company?
A:MOQ is 3000 pcs ,if less,please check with us firstly..
Q:What delivery time is in your company for this product?
A:Delivery time is 25 days since order in general.If tight,please check us.We will arrange production for you as per mutual benefit benefit.
Q:What payment is it in your company after order?
A:Payment is TT or LC at sight.Another payment can be accepted after firm
Q:Can you produce this product as per our color code?
A:Customized color is welcome with pantone color code.Or customer can send us color sample plate for confirmationl.
Q:Can you pack this product with our color card with our brand logo?
A:Customized color card is welcome with design in PDF,AI,CDR form.
Q:We are one big company,and want to design our special package for this product,is it ok?
A:Another customized package is welcome with design as gift box,display box and so on.
Q:What shipment is it to our destination?
A:In general,we transfer goods by sea for save cost.If you urgent,we can consider by air.
