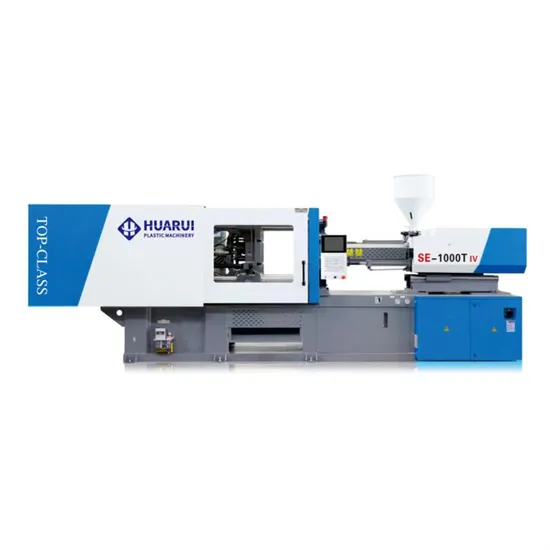

1000ton Plastic Injection Molding Machine for Plastic Fruit Vegetable Crate Box Basket

Product Description

Vegetable Fruit Crate Box Turnover Box Molding Plastic Injection Molding Machine
Product Parameters

SE-1000T IV Plastic Injection Molding Machine Information
Item		Unit		A	B		C	D
Screw diameter		mm		105	115		125	135
Theoretical shot volume		cm³		4979	5972		7056	8230
Shot weight (PS)		g		4531	5435		6421	7489
Shot weight (PS)		oz		159.8	191.7		226.5	264.2
Length/Diameter ratio		L/D		24.1	22		20.2	18.7
Injection pressure		Bar		2032	1694		1434	1229
Injection rate		cm³/sec		861	1033		1221	1424
Max.screw speed		rpm		115
Clamping force		KN		10000
Max.daylight		mm		1660*1660
Open stroke		mm		1220
Space Between Tie-bars		mm		1160*1160
Min mould dimension		mm		450
Mould thickness range		mm		1160
Ejector force		KN		270
Ejector stroke		mm		320
No.of ejector pins		unit		21
Max.motor power		KW		61+61
System pressure		MPa		175
Heater input power		KW		71
Oil filling capacity		L		1200
Machine size		M		12*2.45*3.8
Net weight		KG		50000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
