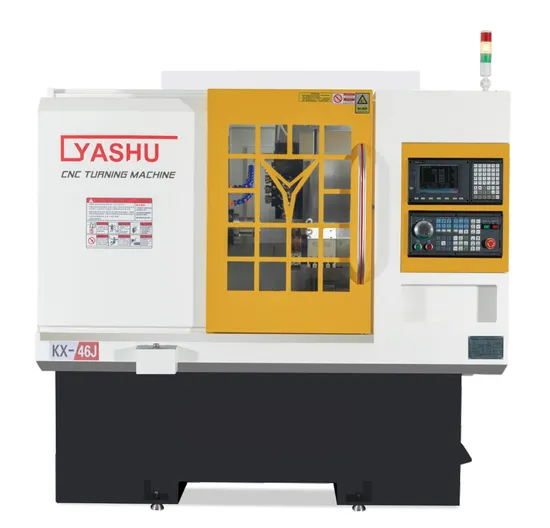

High Quality Light Duty Mini CNC Lathe Machine for Metal Milling Tapping

US$18,200.00
1-2 sets
US$17,800.00
3-4 sets
US$17,600.00
5+ sets

Basic Info.

Model NO.
KX-46J
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001, Eac
Condition
New
Max. Turned Length (mm)
320
Spindle Bore(mm)
45
Toolpost Brand
Nusutu Turret
Repeatability (X/Y/Z) (mm)
0.005
Tool Post Stations
12, 8, 6
Max. Spindle Speed (r.p.m)
4000 r.p.m
Power Requirement
380V / 50Hz
Spindle Motor Power(Kw)
5.5kw / 7.5kw
Travel (Z Axis)(mm)
300 mm
Travel (X Axis)(mm)
900 mm
No. of Spindles
Single
Max. Length of Workpiece (mm)
320
Number of Axes
5
Positioning Accuracy (mm)
+-0.0075
CNC Control System
Self Developed Control System
Transport Package
Wooden Cases
Specification
2000*1400*1950mm
Trademark
YASHU
Origin
Guangdong, China
Production Capacity
500 Set/Sets Per Month

Packaging & Delivery

Package Size
220.00cm * 170.00cm * 190.00cm
Package Gross Weight
2000.000kg

Product Description



Product Description
Machinery Specification
Specification Parameter Optional
LATHE Slant bed degree 45°
Clamping way Hydraulic clamping
Tool form Row of knives
PART Guide rail Taiwan 30 Linear guideway
Ball screw Taiwan 32 ball grinding precision
Bearing XEZ
Ground to spindle center height 1080mm
Spindle motor 5.5kw DMC servo motor 7.5 kw DMC servo motor
Feed servo 1.5kw DMC servo motor
CNC Control System NANJINGKT 830Ti SYNTEC/GSK/LNC

Application scope of processing Normal Use Value Maximum Value
Working
ability		 Spindle bore φ45mm φ45mm
Maximum particle diameter
(disc type)		 300mm 350mm
Maximum length of workpiece to be processed 350mm 380mm
Single side cutting of
stainless steel		 3mm 4.5mm
Repositioning accuracy ±0.0075mm
smooth finish 1RA 1.6RA
Center height of tool rest 50mm
Turning diameter φ500mm
Square tool specification 20*20mm
Travel X axis travel 1000mm
Z axis travel 400mm
Y-axis Y-type 4+4 live tools
Y axis travel 220 mm
Y-axis dynamic clamping type ER 25
Maximum Y-axis speed 2500r/min 4000r/min
Y-axis fast moving velocity 15m/min
Maximum drill diameter 16mm
Turret Brand YUSUTA
Center height 63mm
Stations of turret 8
Single tool rotation time 0.1s
Single tool change time 0.3s
180° tool change time 0.6s
Clamp force(3.5MPa) 21KN
Maximum tangential load moment 1300Nm
Maximum axial load moment
(The former strength)		 1500Nm
Repeated accuracy 0.002mm
Maximum offset load moment 15Nm
Working Pressure 3.5±0.2Mpa
Working Flow 12L/min
IP Grade IP65
Maximum cutting fluid pressure 0.7Mpa
Net weight 40Kg
Tool size 20*20mm
Drilling hole size Ф25
Feed X-axis fast moving velocity 25m/min 30m/min
Z-axis fast moving velocity 25m/min 30m/min
X axis servo power 1.5KW
Z axis servo power 1.5KW
Spindle Spindle speed 3500r/min 4000r/min
Spindle motor power 5.5KW 7.5KW
Spindle nose A2-5
Support hydraulic chuck size 6 inch 8 inch
Dimensional
&
weight		 Dimensions 2100*1600*2000 mm
Weight 2400KG
