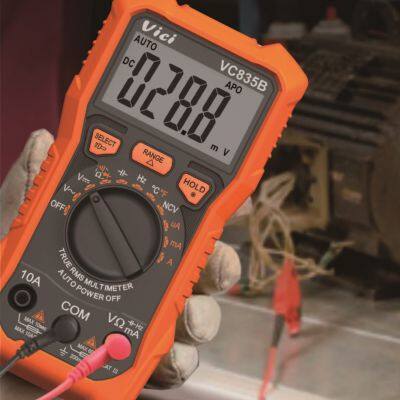

Vicimeter VC835B 3 1/2 Auto Range Digital Multimeter
Features:
New type holster, streamlined design, comfortable handle;
Large LCD display makes reading clear;
Strong antimagnetic and anti-interferential performance;
Full function protection;
Auto power off when there is no measurement in 15 minutes;
Unit symbol display, easy to read; Lighting function, backlight display.
True RMS, Non-contact voltage detect (NCV), Rel, frequency/duty cycle and data hold function.
Technical Data:
DCV 200mV/ 2V/ 20V/200V/600V ± (0.5%+4)
ACV 200mV/2V/ 20V/ 200V/ 600V ± (0.8%+6)
DCA 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 10A ± (1.0%+5)
ACA 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 10A ± (1.5%+5)
Resistance 200Ω/ 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ ± (0.8%+1)
Capacitance 20nF/ 200nF/ 2uF/ 20uF/ 200uF/2000uF ± (2.5%+5)
Frequency 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz ± (0.5%+4)
Temperature -40℃～1000℃/-40℉～1832℉ ± (1.0%+5)
Special function:
True RMS √
NCV √
Data hold :√
Function protection: √
Torch function : √
Backlight display: √
Diode test: √
Duty cycle: 1%~99%
Continuity alarm : Less than 50Ω, it displays “OL” if over 610Ω
Low battery indicator : Approx. less than 2.4 V
Auto power off : About 15 minutes
Input impedance: 10MΩ
Sampling rate: 3 times/s
AC frequency response: 40Hz-2kHz
Operation method: Manual or Auto range
Max. display: 1999
LCD size: 61x28mm
Battery: 3V (2*AAA battery)
Power consumption: Quiescent current about 2mA
General characteristic
Meter color: Orange and Grey
Meter weight 195g（including battery）
Meter size: 140×72×37mm
Standard accessory: Test leads, battery, manual, TP01 temperature probe
Standard packing: Gift box
Quantity per carton: 40PCS
GW per carton: 15KG
Carton size: 32.5×25×47.5CM
>>
