LDPE Low-Density Polyethylene Resin Buble Film Machinery

Product Description

Product Description
Product Description
Standard two layers air bubble film making machine, pe air bubble film widely used in express and transporation fields.such as cargos wrapping in protection during transporation, many items suitable for using air bubble film packing: hardware, gift, charis, sofa, furnitures, autopart, we can also make the bubble film into bubble bags, which in features of light and cheap in packing business, recycling available;
The series of air bubble film making machines mainly produce pe air bubble film with raw material of LDPE granules. It can also be used for laminating bubble film with aluminum film, kraft paper and PE Foam sheet. or used as raw film of producing air bubble film bags, in features of moisture-proofing, dustproof, shock-proofing and static-preventing, which wildly applied to pack electronics, metals, electronic applications, auto components, ceramics, furniture and so on.

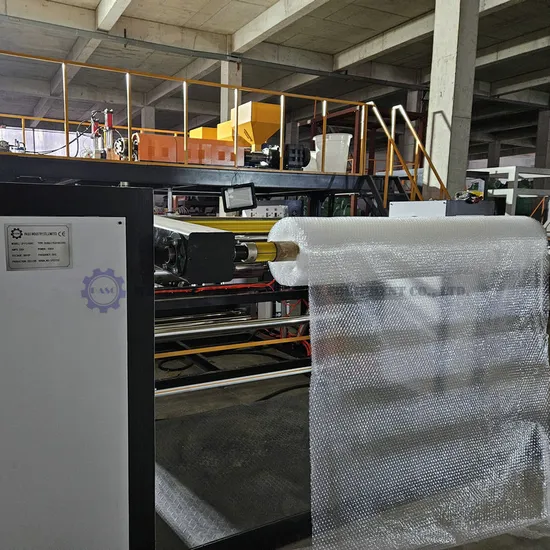

Feature:This extrusion screw adopts the disposable shaping craft. 38CrmoALA nitrogenization treatment for long running. Our PE air bubble film machine is composed of extruder units, air bubble forming device, silicon cylinder, flat dies, slitting device, edge trimmed film collecting device, cutting device, automatic/winding device, inverter and cabinet control system, etc We name it in difference: bubble film, bubble bags, bubble envelopes, bubble packaging, bubble rolls, air bubble film, air bubble sheet, bubble rap packaging, bubble film bags, bubble padded envelopes, bubble padded mailers
Detailed Photos
Detailed Photos



Product Parameters

model	diameter of screw	width of film	thickness	line speed	output	total power	L/D
QP-P3000	φ130mm	3000mm	33-300gsm	800-1500m/h*	120-180kg/h	165kw	30:1
QP-P2500	φ110mm	2500mm	30-300gsm	800-1600m/h*	110-165kg/h	135kw	30:1
QP-P2000	φ95mm	2000mm	25-300gsm	800-2000m/h	100-120kg/h	110kw	30:1
QP-P1600	φ75mm	1600mm	25-300gsm	800-2000m/h	80-95kg/h	90kw	30:1
QP-P1500	φ75mm	1500mm	25-300gsm	800-2000m/h	75-90kg/h	85kw	30:1
QP-P1300	φ70mm	1300mm	25-300gsm	800-2000m/h	70-80kg/h	75kw	30:1
QP-P1200	φ65mm	1200mm	25-300gsm	800-2000m/h	65-75kg/h	70kw	30:1
QP-P1000	φ65mm	1000mm	25-300gsm	800-2000m/h	60-70kg/h	65kw	30:1
QP-P600	φ55mm	600mm	25-300gsm	800-2000m/h	35-45kg/h	40kw	30:1

Packaging & Shipping
1.Packaging: wooden pallet or film wrapped (Fumigation wooden case usually)
2.Delivery time: 5-35/55 days after receiving deposit, depends on order and machine condition.
3.Exporting seaport: Ningbo port ; Shanghai port
4.Payment: we appreciate T/T 30% deposit, 70% balance paid before dispatching; Western Union;L/C acceptable if your goverment policy required
5.Trade terms: ExW,FOB,CFR,CIF,Door to Door, DDU, DDP,
Our Advantages
FAQ
FAQ
1.Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 30minutes by air from Shanghai, around 5hours by train from Shanghai
2.What machines range we make & supply?
Our factory focus on manufacturing extrusion lines, complete bag production line, etc; OEM, ODM, with support of strong R&D team, we also help customer get best solutions for special equipments and plastic machinery;
3.How can we get satisfied machine in hand?
We will make test once machine in ready, to check every parts working condition and electrocircuit; will record relative photo and video for installation in your place.
3. What should we charge if we need engineer service in our country?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary (negotiable)
4. How long is your machine's warranty period?
All our machine have two years guarantee, starting from finished installation. we still keep service for whole life.
5. How could we do if the parts broken within warranty?
We would send the free replacement spare parts during the warranty date.

---
