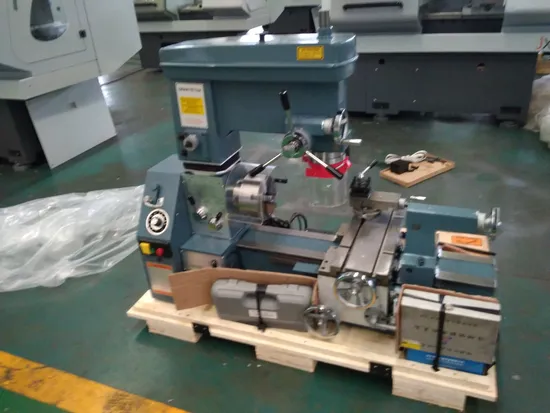

Lathe Milling Machine

Product Description

Main features:
1)Has the purposes of turning, milling, drilling, boring & thread-cutting.
2)DC brushless motor, big torque at low speed, infinitely variable speed.
3)Power-driven for table in milling.
4)Cam clamping chuck.
5)Lengthened table.
6)Has the devices of safety interlock & an overload safety.
7)Lengthened drilling/milling box, 360° rotation in veritical plane.
Standard configuration:
3-jaw chuck, drilling chuck, drill taper stock, center, drawing
bar, exchange gear, tools, etc.
Special configuration:
Stand, steady rest, follow rest, milling chuck, milling cutter, live
center, etc.

SPECIFICATIONS	G1324	G1340
Swing dia. over bed	330mm(13")	330mm(13")
Swing dia. over table	190mm(7.5")	190mm(7.5")
Distance between centers	610mm (24")	1000mm(40")
Spindle bore	28mm (1.1")	28mm (1.1")
Spindle speed	50~3000r/min	50~3000r/min
Longitudinal stroke	510mm ( 20")	890mm( 35")
Cross stroke	185mm (7.3")	185mm(7.3")
Small toolpost stroke	70mm (2.75")	70mm(2.75")
Metric pitch/grade	0.35~6.5mm/24	0.35~6.5mm/24
Inch pitch/grade	7~52T.P.I./21	7~52T.P.I./21
Longitudinal feed/grade	0.067~0.5mm/r/21	0.067~0.5mm/r/21
Cross feed/grade	0.021~0.157mm/r/21	0.021~0.157mm/r/21
Milling-drilling spindle taper	MT3 (R8)	MT3 (R8)
Milling-drilling shaft stroke	127mm(5")	127mm(5")
Milling-drilling box stroke	110mm(4.33")	110mm(4.33")
Table size	450×170mm (17.7x6.7")	450×170mm(17.7x6.7")
Drilling dia.	24mm (0.95")	24mm(0.95")
Power of motor	1.1kw	1.1kw
Overall dimensions of machine	1325×585×1030mm	1705×585×1030mm
Case dimensions of machine	1260x570x1100mm	1640x570x1100mm
N.W/G.W	300/350kg	330/380kg
Package	Venner case	Venner case

Product Details:


Packing and Delivery
Special:
company information
Shandong Linyi Jinxing Machine Tool Co., Ltd.was founded in 1965 and locates in Shandong Linyi high-new technology development zone. It is national high-new technology enterprise on patents in Shandong province. It owns provincial level high-tech R&D center.
It mainly deals with the development,manufacturing and sales of machine tools. It has the yearly capacity of manufacturing vertical machinning center,CNC milling machine,CNC lathe,common machine tool,multi-purpose machines etc.over ten thousands sets.
The company has passed through ISO9001 Quality System Certificate and owns self-operation right of import and export. some products have passed through CE certificate.Its products are sold widely at home and over more than 30 countries and districts abroad such as USA,Canada,Germany ,Italy,Hungary,Australia,South Africa,Korea and Japan,etc.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Technology support :
Professional after-sales service team:
We can Provide Spare parts replacement and repair service
Competitive price:
We can recommend the most suitable machine according to your budget and customer needs, and give you a favorable price.
OEM Accepted:
We can produce design as your requied.please contact us.
We have strict quality control system.please believe our quality.
MOQ: 1 set .
Terms of Payment: T/T (30% in advance and delivery on 100%)
If you have any questions ,please feel free to contact us.
