Bitvisus Support Protocol HDMI1.4 Hdcp1.4 4K Matrix Switcher HDMI Video Switches 4X4 Matrix Splitte

Product Description

Product Description

Product Name	BIT-Ma-GS-0404-2.0 /Ultra HD Matrix Switcher
Resolution	Up to 3840x2160@60Hz
Supporting Agreement	HDMI 2.0 ,HDCP 2.2
Way To Control	Panel buttton control , infrared remote control
Audio output	HDMI Output Comes With Audio,3.5mm Headphone holder,PDIF Audio

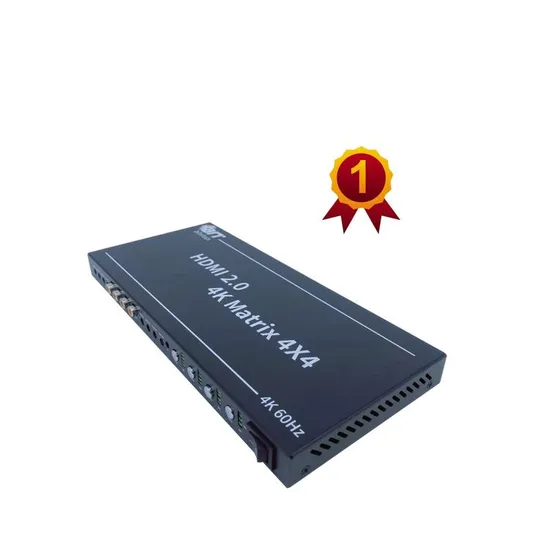

Product performance description BIT_Ma_GS_2.0_0404 is a 4 in 4 out all-digital ultra-clear matrix switcher,Freely switch four HDMI signals,the highest supported resolution can
reach3840x2160@60, 3D video. Support HDMI 2.0, HDCP 2.2, and audio output, which can bring users a lossless and true ultra-clear and fully
digital experience.
The instruction of remote control button:
Enter KEY:
In1+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 1.
In2+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 2.
In3+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 3.
In4+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 4.
Enter KEY:
In1+All: All 4 output ports are switched to the signal of input port 1.
In2+All: All 4 output ports are switched to the signal of input port 2.
In3+All: All 4 output ports are switched to the signal of input port 3.
In4+All: All 4 output ports are switched to the signal of input port 4.
A: 3.5mm headphone socket, audio output, can be connected to headphone audio, etc.
B: RCA socket, PDIF audio output.
C: IR, used to receive remote control signals.
D: OUT4 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on
represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it
means input 4.
E: OUT3 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on
represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it
means input 4.
F: OUT2 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on
represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on,
it means input 4.
G: OUT1 button and signal indicator, used for signal switching and signal input signal display, from top to
H: Power switch.
I: Power interface, connected to 12V@2AAC-DC power supply. The LED light (power) next to the interface is the power indicator light.
The LED light is on when the device is normally powered.
J: 4 HDMI input ports, used to connect signal input sources.
K: 4 HDMI output interfaces (the interface sequence corresponds to the sequence of the front panel audio output interface and
operation buttons), used to connect display devices such as displays, TVs, or monitors.
H: Power switch. Packaging & Shipping Paking:
1.HDMI Matrix 0404: 1pc.
2.Remote Control: 1pc.
3.Power Supply: 12V/2A AC-DC.
4.User Manual: 1pc
Delivery:
1.EXW ShenZhen /ShangHai /HuNan /HanZhou /Hong Kong
2. Shipping days : depend on the area or religion
3. By express / By sea / By air
Company Profile
FAQ Q: Are you a manufacturer?A:Yes,we are a manufacturer focusing on the development, production and sales of series products with FPGA image
processing technology and high-definition audio and video signal transmission as the core.we have our own factory.Q:What is your after-sale service?A: We offer 100% guarantee on our product . Q: What is your MOQ? A: Any quantity is acceptable for your order. And the price is negotiable for large quantity. Q: How long is your delivery time? A: We are manufacturer.For products without customization,we usually ship them within 3 working days. Q:Can you customize the product? A:Yes,we have a team of professional engineers to customize the product. Q:Can you provide samples? A:We are honored to provide you with samples,but we need to pay for the samples.

---
