| US$50,000.00-79,400.00 | 1 Unit (MOQ) |

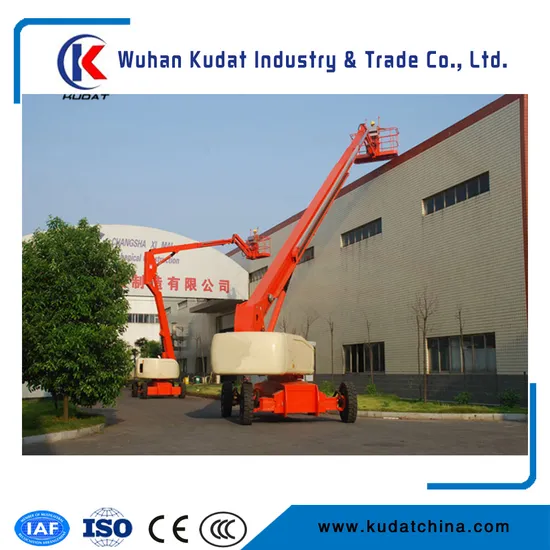

| M ODEL GT ZZ 24Z | |||
| MEASUREMENTS Metric US | |||
| Working height maximum* | 25.7m | 84ft3in | |
| Platform height maximum | 24m | 78ft8in | |
| Horizontal reach maximum** | 13.6m | 44ft7ft | |
| A | Platform length-8ft model | 0.76m | 2ft6in |
| B | Platform width-8ft model | 1.83m | 6ft |
| C | Height-stowed | 2.82m | 9ft3in |
| D | Length-stowed | 10.7m | 35ft |
| E | Width | 2.48m | 8ft |
| F | Wheelbase | 2.6m | 8ft6in |
| G | Ground clearance-center | 0.33m | 1ft |
| PRODUCTIVITY | |||
| ()Lift capacity (restricted) | 230kg | 507lbs | |
| Platform rotation | 160° | ||
| Jib rotation | 135° | ||
| Turntable Swing | 360°continuous | ||
| Turntable tailswing | 0 | ||
| Drive speed -stowed | 6.3km/h | 3.9mph | |
| Travel speed -raised or extended | 1.1km/h | 0.68mph | |
| Gradeability -stowed | 30% 25% | ||
| Turning radius - inside | 3.0m | 9ft10in | |
| Turning radius -outside Turning radius - axle extendeded outside | 5.2m | 17ft | |
| Controls | 12V DC Proportional 12V DC Proportional | ||
| Solid tires/Foam filled | 33×12-20 | ||
| POWER | |||
| Power source | Cummins B3.3-C60(45kw) | ||
| Auxiliary power unit | 12V DC 12V DC | ||
| Hydraulic tank capacity | 250L | ||
| Fuel tank capacity | 100L | ||
| WEIGHT *** | |||
| 2 2WD | 10450kg | 23037lbs | |
| STANDARDS COMPLIANCE EN280\JG/T5101\Q/ADZV001-2008 | |||
