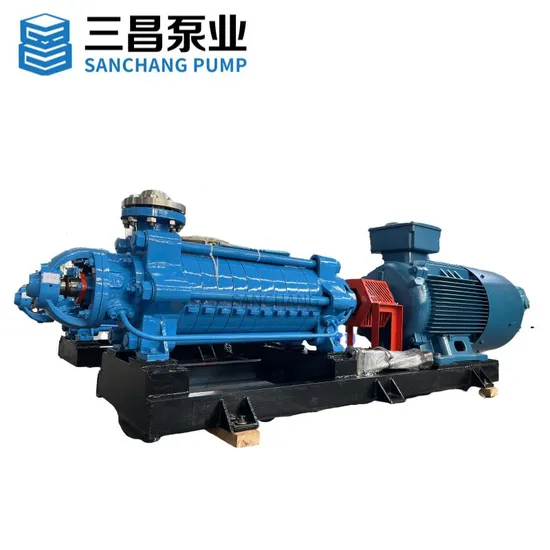

Diesel Engine Electric Motor Industrial Horizontal Multistage Centrifugal Pumps High Pressure Mining Water Pump

Product Description

Diesel Engine Electric Motor Industrial Horizontal Multistage Centrifugal Pumps High Pressure Mining Water Pump Product Description
D-type horizontal multi-stage centrifugal pump is a single-suction multi-stage segmented centrifugal pump, which is used to transport clean water or other liquids with physical and chemical properties similar to water. The temperature of the liquid should not exceed 80 °C. It has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump flow parts, the sealing form and increasing the cooling system. D-type horizontal multi-stage pump is a multi-stage segmented type. Its suction port is located on the water inlet section, in a horizontal direction, and the discharge port is vertically upward on the water section.Its head can be increased or decreased according to the use needs. The main parts of the D-type horizontal multistage pump are: water inlet section, middle section, water outlet section, impeller, guide wing baffle, water outlet section guide wing, shaft, sealing ring, balance ring, shaft sleeve, tail cover and bearing body. According to different purposes, D series can be divided into: D: Suitable for transporting clean water without solid particles or liquids with physical and chemical properties similar to clean water. The temperature of the transported medium is 0~+80ºC, the pump suction is horizontal, and the discharge is vertically upward. DM: It is suitable for conveying liquids with a small amount of solid particles and similar physical and chemical properties to clean water. The temperature of the conveyed medium is 0~+80ºC, the pump suction is horizontal, and the discharge is vertically upward. DG: It is suitable for conveying clear water without solid particles or objects with physical and chemical properties similar to clear water. The temperature of the conveyed medium is -20ºC~150ºC, and the suction and discharge of the pump are vertically upward. DY: It is suitable for conveying petroleum products without solid particles or other liquids similar to water. The temperature of the conveyed medium is -20ºC~+400ºC, and the suction and discharge of the pump are vertically upward. DF: Suitable for conveying corrosive liquids without solid particles, the temperature of the conveyed medium is -20ºC~+150ºC, and the suction and discharge of the pump are vertically upward. All the above types of pumps can be selected with mechanical seals or soft packing seals according to user requirements, and the material of the flow-through parts can be cast iron, bronze, stainless steel or ordinary carbon steel. Performance Parameters:

Flow:	3.7-1350m3/h
Head:	33-1800m
Power:	3-1600kw
Material:	Cast Iron,SS304,SS316,etc

Features: 1. Advanced hydraulic model, high efficiency and wide performance range. 2. The pump runs smoothly and has low noise. 3. The shaft seal adopts soft packing seal or mechanical seal, the seal is safe and reliable, the structure is simple, and the maintenance is convenient and quick. 4.The shaft is a fully sealed structure, which ensures no contact with the medium, no rust, and long service life.
Application

Multi-stage Centrifugal Pump for Mine	Multi-stage Centrifugal Pump for Chemical Factory	Multi-stage Centrifugao Pump for Power Plant
Multi-stage Centrifugal Pump for Chemical Factory	Multi-stage Centrifugal Pump for Chemical Factory	Split Case Centrifugal Pump for Chemical Factory
Split Case Centrifugal Pump for Cycling Water	Split Case Centrifugal Pump for Salt Chemical Factory	Multi-stage Split Case Centrifugal Pump for Chemical Factory

Company Profile

Workshop
Packaging & Shipping
FAQ
Our Service 1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

---
