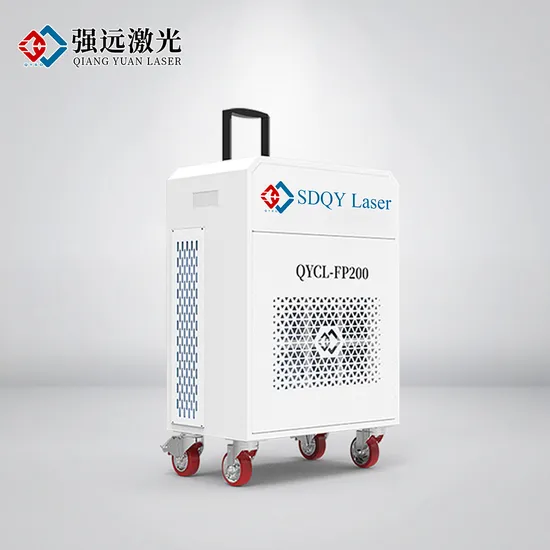

Pulse Rust Removal Luggage Laser Cleaning Machine 200W Laser Cleaner for Wood Car Boat Oil Metal

Product Description

Pulse Rust Removal Luggage Laser Cleaning Machine 200W Laser Cleaner for Wood Car Boat Oil Metal
Product Description
Laser Cleaning System 100W 200W 300W 1.8mj Surface Cleaning Machine Clean Laser Machine is a new generation of high-tech surface cleaning products. It is easy to install, control, and implement automation. With Simple operation, switching power supply, open the device, then it can be achieved cleaning without chemical reagent, medium and water washing, it has many advantages of the focus adjustment manually, joint surface cleaning, higher cleaning surface cleanliness, it also can remove the surface of resin, grease, stains, dirt, rust, coating, paint on objects.

1. Non-contact cleaning, does not damage the parts substrate.
2. Precise cleaning , which can achieve selective cleaning of precise location and precise size.
3. No chemical cleaning solution, no consumables, safe and environmentally friendly.
4. The operation is simple, just power on, and it can be hand-held or cooperated with the manipulator to realize automatic cleaning.
5. The cleaning efficiency is very high , saving time.
6. The laser cleaning system is stable and requires almost no maintenance.
7. One-time investment , cost-effective.
SDQY laser controller-self developed
1. 8 patterns presets
2. compact and simple operation

portable pulse laser cleaning head
1.weight 1kg
2.dual axis
3.with air blowing device and focal support vacuum device

Max brand laser source-Mopa type
pulse width and frequency can be adjustable,which makes more application possible. The pulse width could be adjusted from 10-500ns, the peak power could reach up to 10KW, and the frequency could reach up to 4000kHz.
Product Parameters

Model	QYCL-FP100	QYCL-FP200	QYCL-FP300	QYCL-FP500
Average laser power (w)	120~130	200~210	300~320	500
Single pulse energy (mj)	1.8			2
Weight of hand-held head (kg)	1			3.2
Rated power (kw)	1.3	1.8	2.2	7.5
Power adjustment range (%)	10-100
Width of scanning (mm)	100*100
Focal length (mm)	100/160/254/300
Central wavelength (nm)	1060-1070
Cooling method	Air Cooling			Water Cooling
Fiber length (m)	5m (Optional 10 m)			5m
Type of laser source	Pulsed fiber laser
Dimension of machine (mm)	520*347*707			1110*490*833
Weight of machine (kg)	55	71		145
Power supply	220V / 110V

Product Application
1.Paint removal & de-coating
2. Surface preparation for adhesive bond and coating
3. Mold removal
4. De-oiling
5. Surface structuring
6. Restoration of stone, brick and concrete
7. Sensitive substrate cleaning, i.e. CFRP
8. Corrosion cleaning After Sales Service
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp,Wechat, Email.

*Engineers available for Face to face video to supply after-sale services.

* Friendly English version manual and operation video on youtube.
Certifications
Company Profile
SDQY Laser is a professional manufacturer of laser cleaner, committed to providing customers with high-quality products and excellent services. As an enterprise with its own R&D team, we are constantly developing and innovating to provide customers with better solutions.

We are well aware of customers' needs and requirements for products, so we also provide free testing services so that customers can better understand our products and services. We welcome customers to send us samples for testing, and we will give the test results and solutions as soon as possible.
With customer
Germany Australia Malaysia

England Mexica Norway
FAQ
1: Can I get some tests before I decide which to buy?
Yes, we are able to offer free tests. Actually we suggest to have some tests before you making the purchase decision.
There are several models of laser cleaning machine, normally we will make tests for our customer with different models to choose the most suitable one from our professional suggestion but not the most expensive one. The samples test will be shown by videos and pictures.
2: What is the machine HS CODE?
It is 8456110090.
3: Is the machine very difficult to learn? I am a very new starter in lasers.
Please don't worry, the machine is very easy to operate, even if it is your first laser machine.
(1) We will share the demo software(if there is one), you can try the basic functions in your PC;
(2) All user manuals, the machine, software and other supportive guidance, will be prepared for you in paper or PDF;
(3) Before the machine leaving for you, we will take complete guidance video to show you the basic steps to start the machine;
(4) Following the machine, there will be a flash driver, which includes the teaching videos, data backup, related files;
(5) Open to negotiate the operation skills, no time limited.
4: Do I need to pay special attention on the machine maintainence?
The advantage of the fiber laser is less maintainence and long service time.

---
