Manual Multifunction Bender Angle Panel Die Bending Machine

Product Description

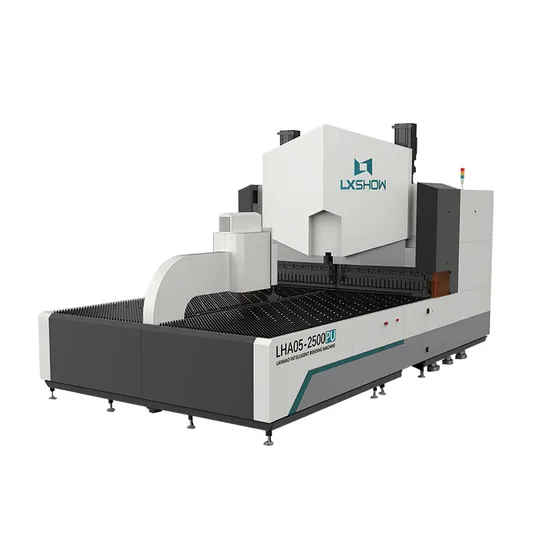

LHA05-PU series intelligent flexible bending center, using pressure arm feeding mode, the whole machine is designed and produced in accordance with high precision machine tool standards. Mesh, corrugated, hollow and all kinds of flat or shaped workpieces are applicable, support C-axis lifting, using quick disassembly and quick installation of press knife, standard power hinge knife, comprehensive bending speed.
Product Parameters

Configuration Parameter	LHA05-2000PS	LHA05-2500PS	LHA05-2500PU
The fastest bending speed	0.2 s/knife	0.2 s/knife	0.2 s/knife
Maximum bending width	2000mm	2500mm	2500mm
Maximum bending height	170mm	170mm	170mm
Nominal voltage	380v	380v	380v
Total motor power	168Kw	168Kw	81Kw
Average power	5.4Kw (about )	5.8Kw (about )	2.9Kw (about )
Noise	50dB (about )	50dB (about )	50dB (about )
Maximum bending thickness (Thicker plate can be customized)	UST 515N/mm2 304 Stainless steel 1.5mm	UST 515N/mm2 304 Stainless steel 1.5mm	UST 515N/mm2 304 Stainless steel 1.2mm
	UST 410N/mm2 Cold plate 2.0mm	UST 410N/mm2 Cold plate 2.0mm	UST 410N/mm2 Cold plate 1.5mm
	UST 265N/mm2 Aluminum plate 3.0mm	UST 265N/mm2 Aluminum plate 3.0mm	UST 265N/mm2 Aluminum plate 2.0mm
Maximum bending thickness (Thicker plate can be customized)	UST 515N/mm2 304 Stainless steel 1.2mm
	UST 410N/mm2 Cold plate 1.5mm
	UST 265N/mm2 Aluminum plate 2.0mm
Minimum material thickness	0.35mm	0.35mm	0.35mm
Maximum bending size	2000*1250mm	2500*1250mm	2500*1250mm
Number of axles	Standard 18 axis concurrent linkage	Standard 18 axis concurrent linkage	Standard 16 axis concurrent linkage
Power hinge knife	Standard configuration	Standard configuration	Standard configuration

Main Parts
The core frame of the equipment adopts high grade QT500-7 and gray iron 250 castings. Long-term operation is stable and reliable.Nanjing process 8020 heavy duty grinding screw, more stable transmission, higher precision.Choose Nanjing process heavy load type high precision P3 55 roller type line rail, bearing greater, higher precision.Selected NACHI original high load ball screw injection molding machine special bearings, bearing ball diameter up to 16mm. Samples
Factory
* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit
Off-line Activity
After Sales Service
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, if you have any questions, you can contact us any time, 24x7, we always here.

---
