Auto CNC 4 Axis Tool Garden Pruning Scissors Grinding Machine

Product Description

Sun Glory Industry --- A-Z Complete Turn-key Project Provided
Parameters
---------------

Item	GH-4Z350F
Main motor power	15KW
Grinding wheel linear speed	30m/ s (white corundum grinding wheel )
CNC system	4-axis Huazhong
Main shaft box max. travel (C)	150mm
Knife rest valid travel (Z)	Gindable length 380mm
Swift angle (A)	40° -30°
Grinding wheel specification	Barrel wheel φ355xφ275x125mm

Advantages

1. CE/ ROHS approved


2. Adopts 4-axis Huazhong CNC control system, programs can generated by system with valid DXF graph file upload or input manually through the panel. Enable align control of grinding wheel axis fix quantify amount compensation, knife hanger horizontal feeding/vertical grinding, knife rest plate swift angle/feed velocity and feed amount and feed velocity of X, Z, A and C-axis. Multiple operation modes included, Jog, Increment, Electronic hand-wheel, Automatic grinding, Automatic compensation for grinding wheel and more functions.

With correct parameter setting to the system, precision error caused by the gap of ball screw can be reduced or eliminated, quality stability and uniformity of mass production can be ensure.
Applicable to Single-side surface abrasion, bevel surface re-polish, edge grinding, blade back-edge grinding of Ceramic knife, Tailor' scissor, Steel-head knife, Kitchen knife, Bone knife, Dagger and etc. similar blades.

The machine is design to equip a robot arm as automation version, equip with a specialized grinding axis to feed the blades to grind. Use linear guide rail, machine works more stable and will not occurs grinding trace on the blade surface, ensures the stability of machine rigidity. Improve grinding velocity. Equip grinding wheel automatic compensation function.

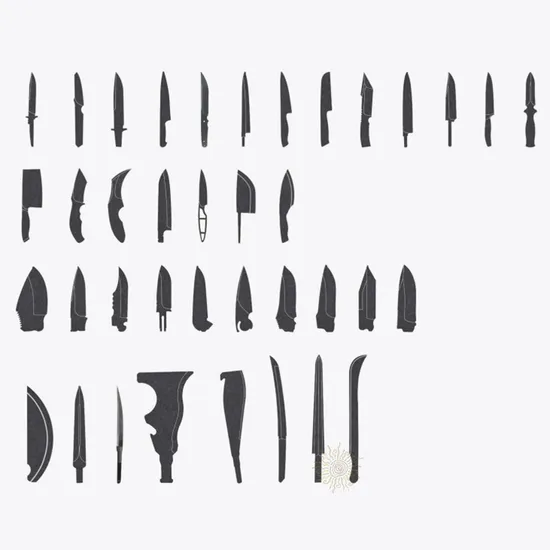

End products
-----------------
Services
-----------
Pre-sale Service
1. Popular design, new trend information sharing.
2. Return of investment analysis.
3. A-Z solution flow chat design.
4. Production process design and feasibility study.
5. Machines line arrangement.

In-sale Service
1. Machines and molds quality control during manufacturing and after finish.
2. Independent verification for each process.

After-sale Service
1. Plant layout proof & production line positioning.
2. Production line installation & debugging.
3. Training after shipment in buyer's factory.
4. Annual visit on site.

Upgraded Service
1. Market trend & latest fashion broad casting.
2. Continuous & systematic training for management, maintenance team & operators.
3. Back up for the regular production.
4. Support in new R&D realization.

---
