High-Performance Electrolytic Cell for Copper and Gold Refining

Product Description

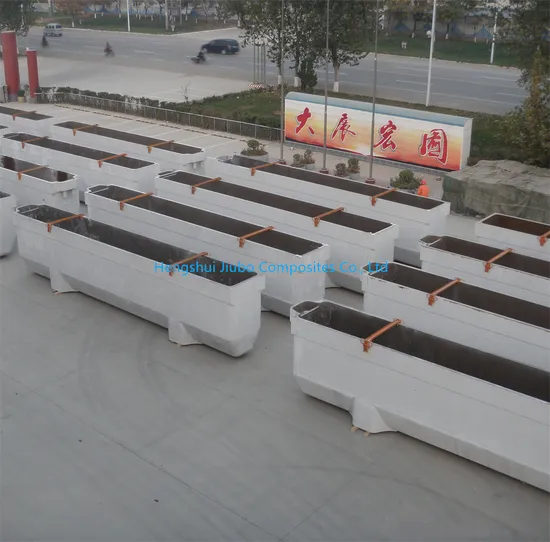

1.Vinyl ester resin monolithic casting electrolytic cells Electrolytic cells are designed, built and installed to satisfy the most stringent requirements requested by tankhouse operators worldwide. In most cases their main request is to guarantee full operating availability throughout the plant's lifespan, maximizing production of high-purity metal (copper, zinc, nickel, cobalt, lead or other nonferrous metals) with absolute safety for people and the environment. Additionally, cells must accommodate changes for continuous improvement of the electrolytic process, integrating efficiently with upgrades of complementary equipment such as anodes, cathodes, cap, boards, overhead crane electrolyte agitation systems, acid mist control devices, thermal insulation among many others. 2.Structure Electrolytic cells are cast monolithically based on a patented, three-layer composite material system: The Internal layer is a monolithic tank made with multiple layers of fiber-reinforced vinyl ester resin (FRP) complying with chemical barrier international norms that assure long-term impermeability and corrosion resistance. The Intermediate layer is the structural core made with polymer Concrete, with a patented formulation to achieve a low coefficient of thermal expansion, providing long-term structural integrity with low thermally-induced stresses The External layer is a standard seal layer of FRP that further protects the structural core from electrolyte splashes and spills. Optionally, this external seal may be specified with multi-layered oriented fiber reinforcements to guarantee trouble-free operation in unusually extreme operating environments. 3.Benefits of electrolytic cells (1)Long-term impermeability, free of corrosion, 20+ years warranty Our monolithic internal tank manufactured with multiple layers of fiber-reinforced premium vinyl ester resin. It has continuous service without leakage, free of corrosion and structural flaws which operating under normal conditions as specified for each project. (2)Swift, accurate and less costly installation Electrolytic cells include features that allow reduction of 25% or more in time needed for cell erection, alignment and leveling compared to time required with conventional polymer concrete cells. Dimension tolerances for electrolytic cells are consistently tight, simplifying installation in the most demanding applications, including plants with automated crane systems. (3)Minimum cleaning time and water consumption The rounded internal shape, optional sloped cell floors, and smooth, flat finish of the internal tank, facilitate water sweeping and drainage of heavy sludge, with reduced water usage and accelerating return to service after each cleaning. (4)Minimum maintenance cost The robust, virtually impervious internal tank that is chemically bound to the polymer concrete structural core during molding is tolerant to operating abuse its smooth, non-stick surfaces minimize adhesion of contaminants. (5)Maximum operational safety The structural core of electrolytic cells is bolstered with sturdy external seismic reinforcement blocks confining its floor supports, and includes a robust, internal bidirectional, pultruded FRP bar mesh reinforcement which positively maintains integrity should the cell fail due to catastrophic events. Electrolytic cell installation protocols call for lateral wall collaboration between cells, thus reducing stress levels of cell around 4o% under normal operating conditions.
Product Parameters
list of existing molds

No.	Dimension (mm)
1	11000*1330*2360
2	5840*1170*1400/1600
3	4800*940*1650
4	7370*1180*1480
5	4362*940*1855
6	4640*990*1600
7	3850*960*1579
8	3400*960*1579
9	5200*890*1370/1550
10	6700*1200*1540
11	5000*1170*1500/1700
12	5200*1200*1480
13	6660*1220*1540
14	4150*840*1564
15	5970*1170*1400/1600
16	2900*1200*1509
17	8370*1120*1730
18	5100*960*1600
19	4030*940*1650
20	4530*1010*1640
21	4970*1160*1400
22	2300*700*1600
23	4000*1420*1000
24	5000*1200*1400
25	5900*1200*1950
26	5000*820*1650
27	5840*1170*1400*1700
28	4180*990*1500/1615
29	5300*940*1650
30	5050*1070*1950
31	3470*870*1250

Certifications
Hengshui Jiubo Composites Co., Ltd. is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology. Through the continuous development and introduction of professional technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 certification, our annual sales of glass fiber reinforced plastic series products achieved 20,000 tons, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Iran, Egypt etc, and won the support and trust from new & old customers.
Main products: FRP tank and chemical equipment High, middle, low pressure FRP pipe FRP small-scaled wastewater treatment tank FRP cooling tower FRP pultrusion, molded series products FRP polymer electrolytic cells S/F, F/F double-wall oil fuel storage tank Whole set of computer control filament winding machine Whole set of FRP pultrusion machine Whole set of FRP molded hydraulic press Whole set of FRP grating molded machine
Hengshui Jiubo Composites Co., Ltd. not only have manufacture ability, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service.

---
