Product Description
Product Description

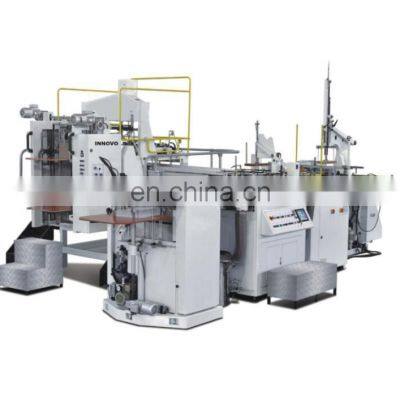

Product Description Automatic Rigid Box Making Line ZX-600 Product introduction: It is the best equipment for making top grade rigid box.with best designed and great performance. consist of feeder,quad stayer,gluer,spotter,wrapper,it adopt advanced PLC system,photoelectric detecting system,precision hydraulic pneumatic deviation correcting system,convenience touch screen HMI(human machine interface with Chinese and English version) to finish box output with below process:automatic feeding delivery(sheet wrap paper & cardboard) and holt melt glue taping stick four corners of cardboard box,paper gluing,suction belt conveying,positioning cardboard box,press,auto drawing&catching,wraping(forming) box in one time.through machinery, hydraulic,pneumatic and electric system union control operation to realize automatic produce, multiply to improving the work efficiency,innovated the traditional rigid set-up box production,more than 30 times speed increased that compared with traditional craft. It is suit to make luxury rigid set-up cardboard boxes, like shoes box, shirts box, jewelry box, gifts box etc. Features:1.Feeder to achieve automatic delivery for wrap paper and cardboard feeding.2.Hot-melting glue system to automatic circulation, mix and glue for wrap paper.3.Hot-melting glue tape to automatic conveying,cutting,and finish pasting the four corners of cardboard in one time process.4.Quad stayer to folding ,glue tape sticking and erecting inner cardboard box and belt converying to named place.5.The vacuum suction system can keep the wrap paper fix on convey belt and no deviation.6.The hydraulic pneumatic spotter device combine with precision photoelectric detecting swith to correcting and right positioning the inner cardboard box on wrap paper.7.the square press tooling can compact each conveying box that under its range,make the touch surface between wrap paper and cardboard turn to more neat and smooth.8.The smart mechanical arms can automatic drawing boxes from the conveyer belt and delivery them to the wrapper’s range. 9.The wrapper can continually to turn in edge sides of paper and wrap the inner cardboard box and finish box forming process.10.This machine adopts PLC control, photoelectric tracking system, touch screen HMI to realize the automation production process of rigid carton .11.It can automatically diagnose the troubles and alarm accordingly its problem. W+2H-4T=C(Max.) L+2H-4T=D(Max.)A(Min.) W+2H+2T+2R A(Max.) B(Min.)L+2H+2T+2R B(Max.) Technical Parameter:Paper wrap size(A*B)Amin95mm Amax610mmBmin180mmBmax850mmCardboard size(C*D)C600mmD800mmPaper wrap thickness 100-200gsmcardboard thickness T1-3mmFinished box size(W*L*H)Wmin50mmWmax400mmLmin100mmLmax600mmHmin15mmHmax150mmTurn in deepth Rmin7mmRmax35mmPosition precision 0.5mmProduction speed 35 sheets/minPaper pile height 300mmCardboard pile height 1000mmmotor power 10.35kw/380v 3phaseheater power 6kwGlue tank capacity 60LAir consumption 12L/minmachine weight 6800kgmachine dimension L6600×W4100×H3250mm Remark:1.The max and min size of the boxes are affect by those size of material and quality of material.2.the detail production speed of this machine depend on several factors:raw materials,glue and the operator's skill . Packaging & Shipping1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.2. In order to be waterproof, we usually use bubble film to wrap machine.3. We can handle shipping for customers too. Our ServicesWe provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.Company Information*With 10 years' Experience*Having ISO 9001-Certified Factory*Strong R&D capability*High Quality Guaranteed*First Class Service And Best Prices*Primary products: Automatic High Speed Flute Laminater ZXSCM Book Case Making Machine 650UV Coating Machine ZX-650C Manual Paper Pasting Machine Box Making Machine Hot Melt Gluing Machine and Gluing Machine Table Gluing Machine Paper Pressing Machine.etc Welcome to visit our factory! FAQ1.What is Innovo company machine warranty?----one year.2.Does your machine with CE certificate?----Yes.3.What is the production time while placing order?----Arounding 7-30 days4.What is the delivery time?----Within 7-30 days after get the payment.5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as soon as possible.8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.10Do you have stock product to sell?----Maybe, It depends on which machine you like.11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via West Union too. You can choose as you like. We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.Our faith:1) Society's Avail First 2) Client's Avail First 3) Employee's Avail First 4) Enterprise's Avail SecondIf you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.Innovo China
>>
