8L Aluminum Gas Cylinders Can Be Used to Store, Oxygen Gas Calibration Gas, Electronic Grade Gas

Product Description

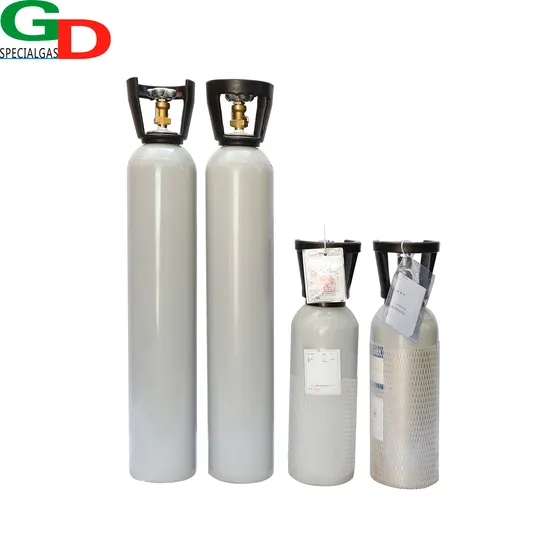

Aluminum Gas CylinderThe aluminum gas cylinders are manufactured from high strength aluminum alloy 6061-T6, which is the best material for various gases because it can maintains excellent quality and gas purity. Our aluminum cylinders are made strictly as per EN ISO & ISO 7866, DOT-3AL, EN 1975, GB 11640 and TC-3ALM. Based on this, we have been exporting our high quality aluminum gas cylinders to many countries.
our aluminum gas cylinders store gases for a wide variety of applications including ultra-high purity gases for electronics manufacturing, special and calibration gases, industrial gases, medical oxygen, food and beverage grade CO2, SCUBA, fire & rescue, etc.
specification For Industrial Gases, Special Gases and Calibration Gases

Model No.	Water Capacity (L)	Outside Diameter (mm)	Length (mm)	Wall Thickness (mm)	Net Weight (kg)	Service Pressure (MPa)
LW-60-0.5-15-H	0.5	60	267	3	0.4	15
LW-60-0.6-15-H	0.6	60	310	3	0.5	15
LW-75-0.7-15-H	0.7	75	295	3.8	0.7	15
LW-82-0.7-15-H	0.7	82	235	4.2	0.8	15
LW-89-0.5-15-H	0.5	89	187	4.5	0.6	15
LW-89-0.7-15-H	0.7	89	227	4.5	0.8	15
LW-89-1-15-H	1	89	287	4.5	1	15
LW-89-1.4-15-H	1.4	89	367	4.5	1.3	15
LW-108-0.7-15-H	0.7	108	189	5.5	1.1	15
LW-108-1-15-H	1	108	201	5.5	1.3	15
LW-108-1.4-15-H	1.4	108	284	5.5	1.6	15
LW-108-2-15-H	2	108	360	5.5	2.2	15
LW-108-2.5-15-H	2.5	108	423	5.5	2.5	15
LW-108-3-15-H	3	108	490	5.5	2.9	15
LW-111-1.4-15-H	1.4	111	242	5.4	1.8	15
LW-111-2-15-H	2	111	318	5.4	2.1	15
LW-111-3-15-H	3	111	445	5.4	2.8	15
LW-111-4-15-H	4	111	572	5.4	3.4	15
LW-111-4.6-15-H	4.6	111	648	5.4	3.7	15
LW-120-2.8-15-H	2.8	120	398	6.1	2.7	15
LW-120-3.2-15-H	3.2	120	437	6.1	3.1	15
LW-140-4-15-H	4	140	393	6.8	3.6	15

LW-140-5-15-H	5	140	482	6.8	4.2	15
LW-140-6-15-H	6	140	551	6.8	4.8	15
LW-140-8-15-H	8	140	711	6.8	6.1	15
LW-140-10-15-H	10	140	870	6.8	7.3	15
LW-159-10-15-H	10	159	711	8	8.2	15
LW-180-10-15-H	10	180	406	8.8	8.4	15
LW-203-6-15-H	6	203	325	9.9	8.1	15
LW-203-12-15-H	12	203	552	9.9	11.8	15
LW-203-13.4-15-H	13.4	203	606	9.9	12.7	15
LW-203-15-15-H	15	203	666	9.9	13.7	15
LW-203-20-15-H	20	203	856	9.9	16.8	15
LW-232-30-15-H	30	232	1236	11.6	23	15
LW-232-40-15-H	40	232	1281	11.6	30	15
LW-232-50-15-H	50	232	1573	11.6	36.4	15
LW-117-2.5-20-H	2.5	117	381	7.5	3.2	20
LW-117-3-20-H	3	117	443	7.5	3.6	20
LW-140-5-20-H	5	140	518	9.2	5.9	20
LW-184-7-20-H	7	184	456	12.5	9.8	20
LW-184-11-20-H	11	184	657	12.5	13.5	20
LW-250-50-20-H	50	250	1477	16.2	50.2	20
LW-60-0.3-30-H	0.3	60	219	5.6	0.6	30
LW-60-0.4-30-H	0.4	60	273	5.6	0.7	30
LW-60-0.5-30-H	0.5	60	325	5.6	0.9	30
LW-60-0.6-30-H	0.6	60	380	5.6	1	30
LW-60-0.7-30-H	0.7	60	433	5.6	1.1	30

For Medical Oxygen

Model No.	Water Capacity (L)	Outside Diameter (mm)	Length (mm)	Wall Thickness (mm)	Net Weight (kg)	Service Pressure (MPa)
LW-60-0.5-15-H	0.5	60	267	3	0.4	15
LW-60-0.6-15-H	0.6	60	310	3	0.5	15
LW-75-0.7-15-H	0.7	75	295	3.8	0.7	15
LW-82-0.7-15-H	0.7	82	235	4.2	0.8	15
LW-89-0.5-15-H	0.5	89	187	4.5	0.6	15
LW-89-0.7-15-H	0.7	89	227	4.5	0.8	15
LW-89-1-15-H	1	89	287	4.5	1	15
LW-89-1.4-15-H	1.4	89	367	4.5	1.3	15
LW-108-0.7-15-H	0.7	108	189	5.5	1.1	15
LW-108-1-15-H	1	108	201	5.5	1.3	15
LW-108-1.4-15-H	1.4	108	284	5.5	1.6	15
LW-108-2-15-H	2	108	360	5.5	2.2	15
LW-108-2.5-15-H	2.5	108	423	5.5	2.5

LW-108-3-15-H	3	108	490	5.5	2.9	15
LW-111-1.4-15-H	1.4	111	242	5.4	1.8	15
LW-111-2-15-H	2	111	318	5.4	2.1	15
LW-111-3-15-H	3	111	445	5.4	2.8	15
LW-111-4-15-H	4	111	572	5.4	3.4	15
LW-111-4.6-15-H	4.6	111	648	5.4	3.7	15
LW-120-2.8-15-H	2.8	120	398	6.1	2.7	15
LW-120-3.2-15-H	3.2	120	437	6.1	3.1	15
LW-140-4-15-H	4	140	393	6.8	3.6	15
LW-140-5-15-H	5	140	482	6.8	4.2	15
LW-140-6-15-H	6	140	551	6.8	4.8	15
LW-140-8-15-H	8	140	711	6.8	6.1	15
LW-140-10-15-H	10	140	870	6.8	7.3	15
LW-159-10-15-H	10	159	711	8	8.2	15
LW-180-10-15-H	10	180	406	8.8	8.4	15
LW-203-6-15-H	6	203	325	9.9	8.1	15
LW-203-12-15-H	12	203	552	9.9	11.8	15
LW-203-13.4-15-H	13.4	203	606	9.9	12.7	15
LW-203-15-15-H	15	203	666	9.9	13.7	15
LW-203-20-15-H	20	203	856	9.9	16.8	15
LW-232-30-15-H	30	232	1236	11.6	23	15
LW-232-40-15-H	40	232	1281	11.6	30	15
LW-232-50-15-H	50	232	1573	11.6	36.4	15
LW-117-2.5-20-H	2.5	117	381	7.5	3.2	20
LW-117-3-20-H	3	117	443	7.5	3.6	20
LW-140-5-20-H	5	140	518	9.2	5.9	20
LW-184-7-20-H	7	184	456	12.5	9.8	20
LW-184-11-20-H	11	184	657	12.5	13.5	20
LW-250-50-20-H	50	250	1477	16.2	50.2	20
LW-60-0.3-30-H	0.3	60	219	5.6	0.6	30
LW-60-0.4-30-H	0.4	60	273	5.6	0.7	30
LW-60-0.5-30-H	0.5	60	325	5.6	0.9	30
LW-60-0.6-30-H	0.6	60	380	5.6	1	30
LW-60-0.7-30-H	0.7	60	433	5.6	1.1	30

Packing and shipping
FAQ 1. Are you a manufacturer?No. However, we are sole distributor for our manufacturer. So there is no doubt that we can offer our customers the best prices. 2. What is your MOQ?We can quote based on our customers' quantity. However, DG cargo should be exported in one container, so we suggest that the quantity should be one container or more. Price will be less if the quantity is more. 3. How about your lead time of production?Normally, it is 25-30 days after PO and deposit by T/T 4. Can we get the COA and MSDS of the gases we need?Sure. COA and MSDS are available. 5. Can we send the gas cylinders back and let you refill if they are reusable?Yes. But you need to inform us in advance, because we need to handle the import customs clearance before exporting.
About us
Qingdao Guida Special Gas Co., Ltd. is a sole distributor for Chinese well-known gas manufacturers, specializing in special gas, industrial gases, medical gases and calibration gases for more than six years. What the mainly gases we sell is Oxygen(O2), Carbon Monoxide(CO), Ethylene(C2H4), Sulfur Hexafluoride(SF6), Carbon Tetrafluoride(CF4), Nitrous Oxide(N2O), CO2/ETO, etc.
We also provide various specifications of high pressure seamless steel gas cylinders, high pressure aluminum gas cylinders, Dewars, drums and other equipment. Cylinder standards include: DOT-3AA, GB5099, EN1964-1, ISO9809-1, ISO9809-2 and ISO9809-3 with TUV, BV, CE certificate.
Cooperating with reliable manufacturers, we take great pride in providing our customers high quality products and superior service, which make us enjoy a high reputation in our country and own a certain number of customers of USA, Canada, Netherlands, France,UAE, etc.

---
