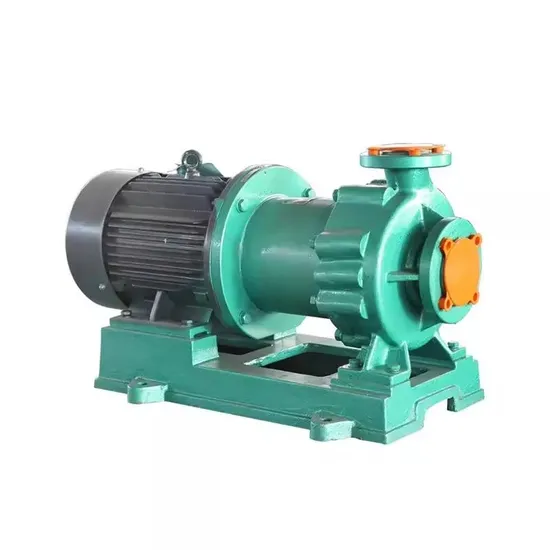

Cqb-F Type Fluorine Plastic Magnetic Pump

Product Description

Product Description CQB-F fluorine lining magnetic pump,made of Fluorinated Ethylene Propylene,is our new product which developed on base of introducing advanced foreign technolog7.The material is the world's best anticorrosive material currently.The magnetic pump with this material have advantages of wide application,strong corrosion,high mechanical seal, non-aging,non-toxin decomposition. The pump can be widely used in chemical,pharmaceutica1,electroplating,petroleum, environment,rare-earth decomposition,smelting,car manufacture(pickle)End other fields.
CQB-F fluorine lining magnetic pump with unique design,have no mechanical seal and no leakage.The wetted parts are made of fluorine plastic,ceramics and fluorine rubber,etc. Pump casing with mettel material is enough to support the weight of pipe. Basic parameters and technical performance of CQB-F fluorine lining magnetic pump conforms to JB/T7742-95"smal1 magnetic drive centrifugal pump"standards.
Application: 1.Chemical corrosive medium conveying 2.used in ionic membrane caustic soda project 3.non-ferrous metal smelting electrolyte transportation 4.automobile manufacturing acid-bath process 5.pharmaceutical, petroleum, electric power, electroplating, dye, pesticide, paper making, food, textile, and many other industries 6. Under - 20 ºC ~ 100 ºC temperature conditions conveying any concentration of hydrochloric acid, hydrofluoric acid, strong alkali, strong oxidizing agents, organic solvents, strong corrosive medium such as reducing agent and not damaged
Detailed Photos
Specification

item	value
Warranty	1 year
Customized support	OEM, ODM, OBM
Brand Name	PIONEER
Model Number	CQB50-32-125F
Place of Origin	Shanghai
Application	Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
Horsepower	2hp
Power Source	Electric
Pressure	1.6Mpa
Structure	Single-stage Pump
Outlet Size	32mm
Voltage	380v/400V/415V
Power	1.5kw
motor	IP55
Material	PFA/FEP
Certification	ISO
Standard or Nonstandard	Standanrd
Model	CQB50-32-125F
Weight	98KG
Temperture	-20~100ºC

Company Profile
Packaging & Shipping
FAQ 1. who are we?We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),MidEast(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),CentralAmerica(5.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe4. why should you buy from us not from other suppliers?Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes andfittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;Language Spoken:English,Chinese,Russian

---
