Product Details
Product Description
Product Description

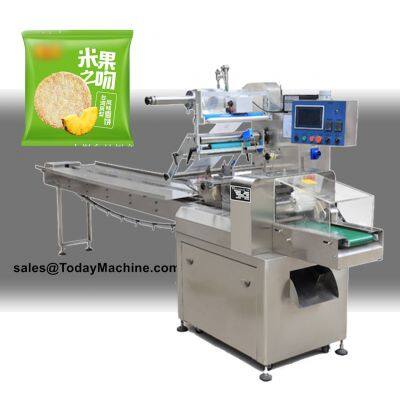

Horizontal Flow Wrapper
A flow wrapper, also known as horizontal form-fill-seal machine, is a packaging machine used in the food, beverage, and other industries for wrapping and packaging products such as snacks, baked goods, candy, and other similar products.
horizontal packaging machine
Versatility: It can be used to package a wide range of products, including food, beverages, pharmaceuticals, and personal care products.
Customizable: It can be customized to meet specific packaging requirements, including product size, shape, and weight.
High speed: It can operate at high speeds, with some machines capable of wrapping thousands of products per minute.
Protection: Provide excellent protection for products, keeping them safe from moisture, dust, and other contaminants.
Optional features: It can be equipped with additional features such as gas flushing systems, automatic product feeders, and printing capabilities.
INDUSTRIES AND APPLICATIONS
1.Food and beverage industry: Flow wrappers are widely used in the food and beverage industry for packaging products such as snacks, candy, baked goods, frozen foods, and other similar products.
2.Pharmaceutical industry: Flow wrappers are used in the pharmaceutical industry for packaging pills, tablets, capsules, and other medication forms.
3.Personal care products industry: Flow wrappers are used in the personal care products industry for packaging items such as soaps, shampoos, and cosmetics.
4.Consumer goods industry: Flow wrappers are used in the consumer goods industry for packaging items such as batteries, hardware, and other similar products.
5.Industrial products industry: Flow wrappers are used in the industrial products industry for packaging items such as bolts, screws, and other small parts.
Technical data sheet
Model
| Speed (bag/min)
| Max film width (mm)
| Product Size (mm)
| Bag Size (mm)
| Power
| Dimension (mm)
| Weight (kg)
|
FW-140
| <500
| 140
| H: 6-12
| L:30-80/60-100
| 3.5kw
| 3800x1350x1450
| 800
|
FW-150
| 50-900
| 150
| L: 10-100
W: 10-80
H: 4-40
| L:30-150
| 3.7kw
| 3850x1100x1600
| 800
|
FW-240
| 30-220
| 240
| –
| L:75-190/150-350
W:40-100
H:<25
| 2.8kw
| 3900x840x1330
| 600
|
FW-280
| 30-220
| 280
| –
| L:85-210/170-380
W:40-125
H:<35
| 2.8kw
| 3900x840x1330
| 600
|
FW-320
| 30-220
| 320
| –
| L:110-250/200-420
W:40-150
H:<55
| 2.8kw
| 3900x840x1330
| 600
|
FW-450
| 20-200
| 450
| –
| L:115-480
W: 80-215
H: 80
| 4.5kw
| 3900x840x1330
| 700
|
FW-600
| 20-200
| 600
| –
| L:115-230
W: 40-280
H: 80
| 4.5kw
| 3900x840x1330
| 700
|
FW-600-PLUS
| 20-200
| 600
| L: 40-240
W: 80-300
H:<150
| L:70-800
| 4.5kw
| 5000x1250x1700
| 700
|
>>
