US$24,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm), 0.05-0.1(mm)
Performance Classification
High-End CNC Machine Tools
Product

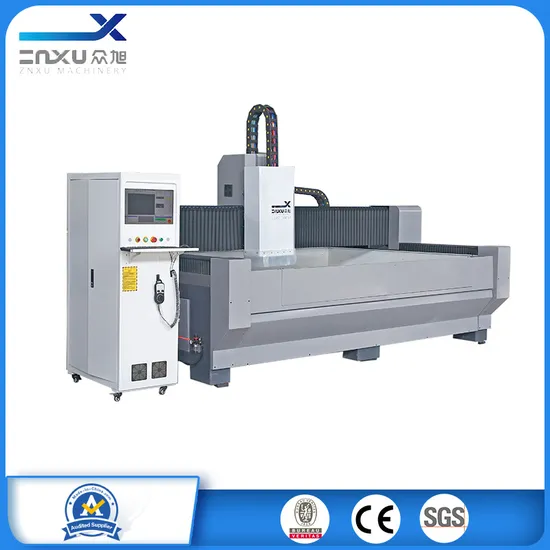

Small CNC Water Jet Cutting Machine
Fuction
Open Slot, Notching, Make Holes, Grinding, Cutting
Models
Different Models as Per Customer Size
Control System
CNC, Servo
Transport Package
Standard Export Package
Specification
3100*1600*1560mm
Production Capacity
20sets/Month
Product Description
| Description | unit | parameter |
| Model No. | 1 | ZXX - C3018 |
| Colum | Set | Heavy iron |
| Control System | set | LEETRO |
| Axis | PC | Cutter change : by hand |
| Diam:ยข125 |
| coller:cool water |
| RPM:24000 |
| POWER:7.5KW |
| Drive | set | YMPC |
| Invertor | kw | BEST : 11KW |
| Max glass size put | mm | 3000*1800mm
(Length can be no limited by adding table) |
| Max Grinding Size | mm | 2500*1450mm |
| Max router (milling) size | mm | 2700*1650mm |
| Z-axis space height-open | mm | 380 |
| motor | set | CHINT |
| Internal of machine structure | set | Half cover/ waterproof design |
| Work table load weight | KG | 120 |
| Positioning accuracy | mm | 0.01 |
Repeated positioning
accuracy | MM | 0.01 |
| Max speed (empty) | M/MIN | 15 |
| Max process speed | M/MIN | 3M/MIN |
| Stroke protection | PC | Omron,Japan |
| GEAR | PC | GERMAN DMJ-1.5M High precision |
| Guide Screw bearing | PC | HIWIN |
| Model: Z axis with diagonal contact |
| Lubrication system | set | Origin : TAIRUN |
| Lubrication automatically |
| Cooling type | set | Water pump |
| Main axis cooling | set | Automatic thermostat cooler |
| Main electric | set | CHINT / SCHNEIDER |
| Volt./Frequecny | KW | AC/380v/10KW/50HZ
(AS PER CUSTOMER REQUEST) |
| Machine Size | mm | 2250*4000*2200mm |
| weight | KG | 2200 |
| power | KW.H | 11.1 |
1.Provide on-site installation and after-sales. (All the freight cost as well as hotel, food caused by this come to the buyer's part, besides, technicians should be paid USD100/ day/people.)
2. The machine is sent as one whole part, no seperated. We will send the operation manual and CD together with the machine. Customer can learn how to use via the manual.
3.We warmly welcome you or your representative to learn how to install and use the machine in our factory. Moreover, the training cost as well as the accommodation is for free.
4. One year warranty period,life-long maintenance
the machine with main parts(excluding the consumables)shall be changed free of charge when problems happened during the warranty period.
5. 24 hours technical support by email or skype or whatapp , or wechat.
>>
