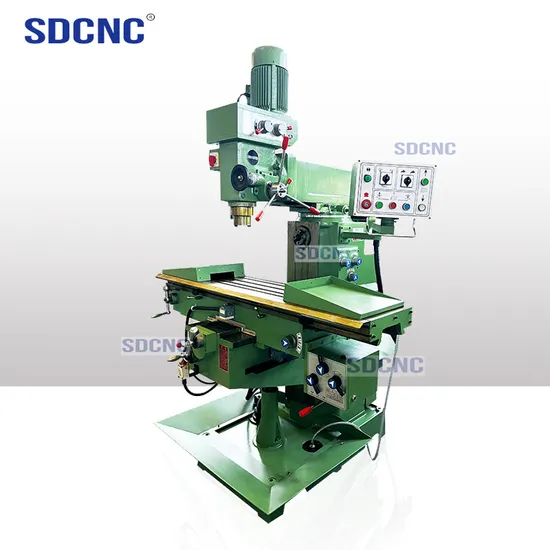

Taiwan Milling Machine Zx6332 Cheap Milling Drilling Machine with Auto Feed

Product Description

SPECIFICATIONS

Specification	ZX6332B	ZX6332Z	ZX6332A
Max. drilling diameter	28mm (manual,cast iron)	50mm	50mm
Max.Auto feed drill diameter	10mm (cast iron)	14mm (cast iron)
Max diameter of vertical mill	20mm		50mm
Distance from spindle end to table surface	90-430mm	180-580mm	85-460mm
Distance from spindle axis to column surface	50-550mm	200-780mm	200-500mm
Spindle speed range	80-5440rpm(vertical) 38-1310rpm(horizontal)	90-2000(vertical) 38-1310rpm(horizontal)	115-1750rpm(vertical) 40-1300rpm(horizontal)
Spindle travel	127mm	120mm	120mm
Table size	1500x320mm	1500x320mm	1500x320mm
Table travel	1000x320mm	1000x300mm	1000x300mm
Motor power	3kw(vertical) 2.2kw(horizontal)	2.2kw	2.2kw
oversall size	1710x1720x2330mm	1710x1720x2330mm	1710x1720x2330mm
Net weight	1650/1760kgs	1650/1760kgs	1650/1760kgs

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers.
The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces
CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical
lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other
CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial
drilling machine, vertical drill Bed and other machine tools.

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.

---
