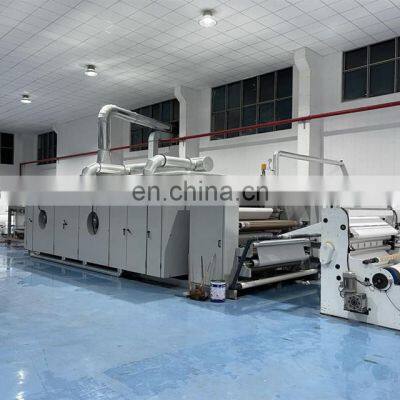

Product OverviewCoating drying oven for filter productsThis oven combines five conveying lines in a section of oven. The heating space is greatly reduced. Improve the efficiency of heat utilization. Reduce the space occupied by the equipment.FEATURES AT A GLANCE1) Conveyor belt feeding part 1. This part is composed of motor, reducer, sprocket chain, and tensioning mechanism; 2. There are five conveying mechanisms in the oven. The length of the conveyor line is about 8 meters. There are 40 meters of materials drying in the oven. 3.The conveyor belt uses Teflon conveyor belt. The conveyor is equipped with a correction mechanism. 2) Oven 1. Convert the steam energy into thermal energy through the radiator to dry the material; 2. The oven is equipped with a dehumidifying fan. Extract the humidity in the oven to improve the drying effect.Right elevationLeft elevationFront elevationPRODUCT SPECIFICATIONSNoItemData1Overal size9680x4230x2060mm2Side hot air circulation fan7.5kw x 4 ea3Moisture exhaust fan2.2kw4Drive motor2.2kw x 55Radiator dimensions1580x220x780mm 8 ea6Teflon conveyor belt width1830mmPRODUCT CONFIGURATIONSensorPartsControl CabinetSALES AND SERVICE NETWORKSIMILAR PRODUCTSFAQ1. Are you a trading company or a manufacturer?We are a manufacturer with more than 30 years of manufacturing and R&D experience.2. Where is your factory?We are located in Yancheng, three and a half hours drive from Shanghai, China.3. Do you have a personal R & D department?Yes we have. We have established our Kuntai R&D center with famous university Padova,Italy in Europe. Kuntai Machinery Co., Ltd asa professional manufacturer with more than 30 years experience in various Laminating Machine&Cutting Machine and other finishingmachines.We always believe in technology- and market-oriented research. Every year, we develop a series of solutions to actualfield application problems and develop new machines for our customers such as Tesla, Toyota, BMW of Germany, KIA of South Korea,3M company and so on.We also can provide customized machine services according to the actual needs of customers.Our goal is to solve every field problem with customers, achieve better material finishing / processing results, and becomecustomers' think tank.If you have any new ideas for our machines, please feel free to contact us!4. How do I trust your quality?We have a strict and scientific quality control management system, and have passed the strict CE and ISO internationalcertifications inspections. We have professional quality control personnel. For each step of our machine production, a set ofquality control teams will be responsible for checking. The following steps can not be performed before the item passes allinspections. At the end of the machine assembly, a series of tests will be performed. We will not deliver it until the machinepasses all tests. We provide a one-year warranty for our machines. Generally, our customers have used our machines for at least 5years, 8 years or even 10 years. Throughout the life of our machines, spare parts will be replaced at cost.
>>
